Turret Milling Machine (X6330) CNC Milling Machine

Product Description

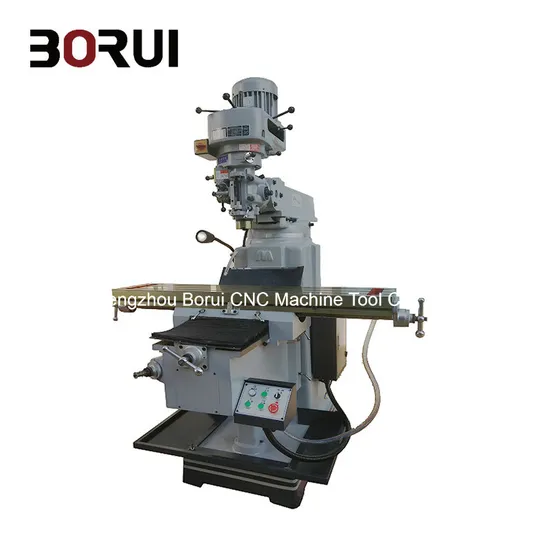

Turret Milling Machine (X6330)
Product Application
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
The Main Specification:

SPECIFICATIONS OF UNIVERSAL TURRET MILLING MACHINE X6330
Item	Unit	X6330	X6330A
Table size	mm	305x1370(12"x54")/ 305x1500(12"x58")	305x1370(12"x54")/ 305x1500(12"x58")
Longitudinal travel	mm	870/ 1000	870/ 1000
Cross travel	mm	360	360
Vertical travel	mm	380	380
T-slot		3x16	3x16
Distance from spindle nose to table	mm	0-350	0-350
Ram Travel	mm	500	500
Spindle taper		ISO40	ISO40
Spindle travel	mm	127	127
Spindle speed	Rpm	Standard: 16 steps 50HZ65-4540rpm, 60HZ:80-5440rpm Optional: Variable 60-3600rpm
Spindle feed		3-steps: 0.04(0.0015)/0.08(0.003)/0.15(0.006")mm/rev
Main motor	kw	3.75kw/5hp	3.75kw/5hp
Head Swivel (Right-Left)		90°	90°
Head Swivel (Front-Back)		45°	--
Single milers package	mm	1566x1650x2080	1566x1650x2080
Two milers package	mm	1720x1800x2175	1720x1800x2175
Weight	kg	1600	1650

Standard Accessories: Plastic splashing guard
Draw bar
Oil collecting plate
Tool & toolbox
Reduction sleeve
work lamp
cooling system
Optional Accessories: Power feed
3-axis Digital Reading
Machine Vise
Milling Chuck
Variable milling head
Air drawbar
Dividing Head
Rotary TablKits
Turret milling machine
The main feature :
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.
6. The working table and guide rail are heating treated and precision grinding.
7. DRO and dividing head are for option.
Product Dtails
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
