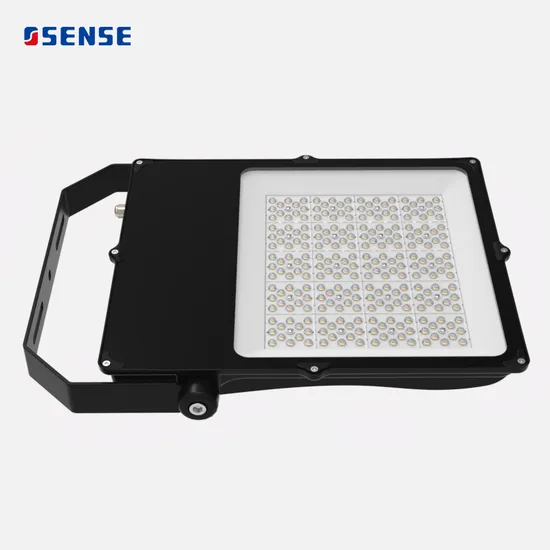

LED Floodlight 30W 50W 80W 100W 120W 150W 200W 240W Lighting LED Sports Flood Light

Product Description

Product Description
LED CH Flood Light Features-30w/50w/100w/150w/200w/240w/300w option -High thermal conductivity ADC 12 Aluminum
-0 degree angle installation with low glare -ADC 12 Material for good heat dissipation -Diversal light distribution angles 15/30/60/90/polarized design , can be applied in a wide range -DALI/1-10V/0-10V dimming, microwave induction function optional -Glass +PC lens design , with high luminous efficiency

GENERAL INFORMATION		ELECTRIC INFORMATION
Mounting Module	Bracket system	Electrical Class	Class I
Operating Temperature	-30ºC/+45ºC	Norminal Voltage	100-240VAC/100-277VAC/180-528VAC 50Hz/60Hz
Storage Temperature	-30ºC/+80ºC	LED Current	SMD3030 150mA@6V
Lens Options	7°/15°30°/60°/90°/120°/P30*90°	LED Lamp Power	30W(3900Lm) 50W (6500Lm) 100W (13000Lm) 150W (19500Lm) 200W (26000Lm) 240W (31200Lm) 300W (39000Lm)
Main Reference Company Standards	EN 60598-1; EN60598-2-1; EN62493; EN55015; EN 61000-3-2; EN61000-3-3; EN61547; EN62471 IEC 60598-1:2003;IEC 60598-1:2008; IEC 60598-2-1:1987;IEC 60598-2-3:2002; IEC 60838-1:2004;IEC 60838-2-2:2006; IEC/PR 61341:2010;IEC 61347-1:2007; IEC 61347-2-13:2006;IEC 62031-2008; GB 7000.1; GB 7000.201; GB17743; GB17625.1	Power Factor	≥0.92
		Flickering Percentage	≤8%;≤3% (optional)
		THD	≤20%
		Driver Brand	Meanwell/Moso/Sosen/INVENTRONICS
		Surge protection options (kV)	L-N 4KV,L/N-PE 6KV@Meanwell L-N 6KV,L/N-PE 10KV@Moso/Sosen/INVENTRONICS 10kV (optional) with LED signal and thermo fuse to disconnect load at the end of life 20kV (optional) with LED signal and thermo fuse to disconnect load at the end of life
		Control system	DALI/1-10v/0-10v/DMX512 dimming, optional microwave induction function
		Mains connection	For cable max section 2.5mm2 Outgoing cable H05RN-F 2/3/5 × 1.5mm2 Length on request (optional)

HOUSING AND MATERIALS		OPTICAL INFORMATION
Housing	ADC 12 die-casting aluminum	Led color temperature	4000K , 5000K ,5700K,
Optic	PC+Glass	CRI	CRI≥70; CRI≥80(optional); CRI≥90(optional); TLCI is an option available upon request
Housing Finish	Powder spraying surface treatment, corrosion resistance/electrophoresis	LED Brand	CREE;Nichia
Refractor	PC UV0	Upward light output ratio	0%
Standard Colour	RAL9017 Black;RAL9007 Gray(optional)	Photobiological safety class	IEC 62471, EN 62778 EXEMPT GROUP
IP	IP65	Testing standard	LM 79-19, EN 13032-1 (all measurements in ISO17025 accredited laboratory)
Impact Housing Resistance	IK08 (5 J) IK09 (optional) (10 J), IK10 (optional) (20 J)	Lifetime of the LED's	Tq =45°,>50000h - L70B50
Impact Lens Resistance	IK08 (5 J)	Vibration Test	Compliant with modified IEC 68-2-6 (0.5G), ANSI C136.31 (3G)

Detailed Photos
Product details:
FAQ FAQ
Q1. Are you a manufacturer?
SENSE : Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
Q2: What Certification do you have?
SENSE : TUV/CB/CE/EMC/SAA/CCC/RoHS approved. And with IP65/IP66/IP67/IK08/IK09/IK10/EMF/LM79/LM80/TM21/WF2/IES report.
Q3. Can I have our LOGO on the products and packages?
SENSE : Yes. We provide OEM service to our customers
Q4: Warranty of your products?
SENSE : 5-7 Years warranty depends on customer's requests
Q5: What about the lead time?
SENSE : 3-7 days for sample, 10-20 days for mass production based on order quantities..
Q6: Can you provide OEM/ODM?
SENSE : Yes, OEM/ODM support for the different application requirements.
Q7: How to deal with the faulty?
SENSE :
1, Our products are produced in a strict quality control system and the defective rate will be less than 0.1%.
2, For defective products in the warranty period, we will send new lights with new orders for small quantities.
3, For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to the actual situation.

---
