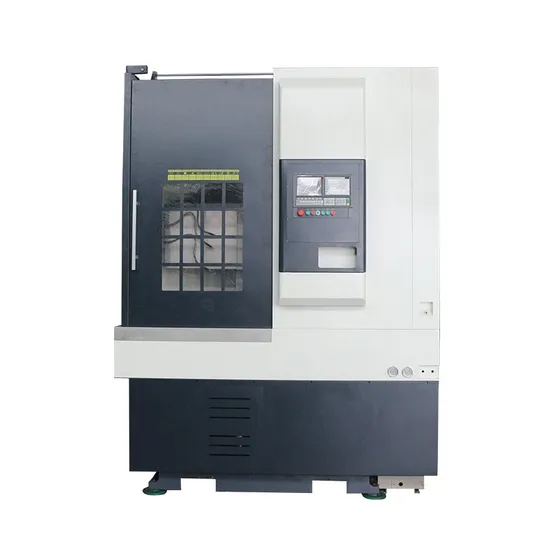

Original Manufacturer Vertical Lathe Vtc65 CNC Vertical Lathe

Product Description

original manufacturer vertical lathe VTC65 cnc vertical lathe


Product Description
The machine is suitable for machining parts in all industries. Especially for wheel cutting and milling.On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.

Main Features:
1.The base, column and sliding seat are all made of high-grade gray cast iron, and have been tempered to ensure that the machine tool has high strength and long-term accuracy and stability.
2. X and Z axes adopt precision linear guide ways.Ball screws are pre-extended. It makes the machine with high rigidity and accuracy.
3. 8-station hydraulic turret is reliable,high efficient and good performance.
4. The spindle is of high rigidity construction to provide variable speed to realize constant linear speed cutting and heavy cutting.
5.The machine tool spindle adopts wide-area and high-torque servo motor drive, which can be used for low-speed and high-torque,
heavy-duty cutting, and high-speed cutting. At the same time meet the needs of roughing and finishing
6. Automatic centralized lubrication with full sufficiency and reliability.

Product Parameters

Specification	UNIT	VTC65
Max.Swing diameter	mm	650
Spindle speed	rpm	100~1000
Cutting feed speed	mm/min	0.1~1000
Vertical moving distance of tool holder	mm	600
Tool rest horizontal moving distance	mm	550
Longitudinal fast moving speed	mm/min	16000
Transverse fast moving speed	mm/min	16000
Tool holder form		horizontal
Diameter of hydraulic chuck	mm	500
Main motor power	Kw	18.5
positioning accuracy	mm	±0.008
Re -positioning accuracy	mm	±0.008
Machine size	mm	1710x2050x2910

Application
CNC vertical lathes are suitable for internal and external turning, internal and external taper, arc, end face, slotting, threading, drilling, reaming, boring, chamfering of large-diameter shaft parts and disc-shaped parts. The machine has a wide range of uses, high efficiency, good stability, simple operation, and can realize high-precision processing for single or batch processing.
Packaging & Shipping
Packaging Details
1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.
Our Services
Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
Company Profile
Certifications
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .

---
