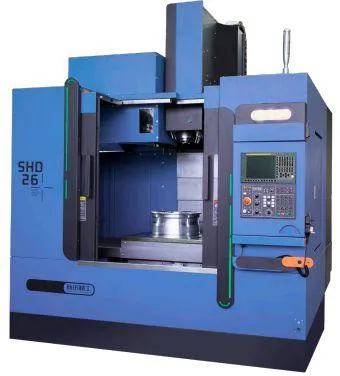

Hub Wheel Machining Center, Machiine Lathe

Product Description

Product Description
Product Parameters

		SHD22	SHB26	SHD26	SHE26
		FANUC Type 3	FANUC Type 5	FANUC Type 3	FANUC Type 3
Worktable size	mm	600*1200	650*900	650*900	650*900
T-slot size	mm	5-18*100	5-18*100	5-18*100	5-18*100
Max. load bearing of worktable	kg	900	1000	1000	1000
3 axis Travel X/Y/Z	mm	1000/650/630	800/720/650	800/720/650	800/720/650
Distance from column front to spindle center	mm	697	762	762	762
Distance from table top surface to spindle nose	mm	110-740	250-900	250-900	240-890
Spindle hole taper		BT40-φ150	BT40-φ150	BT40-φ150	BBT40-φ155
Spindle power	kw	9/11	11/15	9/11	18.5/26
Max. spindle speed	rpm	12000	8000	15000	16000 BBT
Max. feed speed	mm/min	18000	18000	18000	18000
Rapid feed speed	m/min	36/36/32	36/36/24	36/36/24	36/36/24
Tool magazine capacity	T	24	24	24	24
Tool change time	S	2.5	2.5	2.5	2.5
Positioning accuracy	mm	0.01	0.008	0.008	0.008
Re-positioning accuracy	mm	0.005	0.005	0.005	0.005
Machine dimension	mm	2850*2850*3100	2930*2880*2800	2930*2880*2800	2930*2880*2800
Machine weight	kg	7500	7500	7500	7500

Company Profile
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
