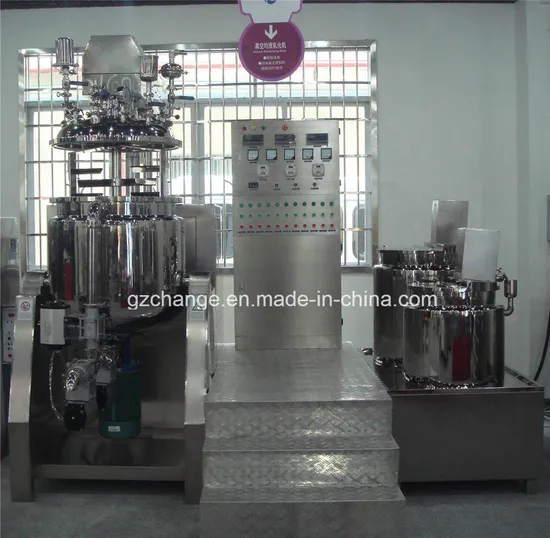

| CH-MT-1000L shampoo mixing tank group | |||
| No | Item | Description | Remark |
| 1 | stirring way | up mixing mode: 3.5KW/each Single leaf oar Frame mixing and fixed oar Speed:0-63r/pm with speed frequency controller B. Homogenize speed 3600RPM power:11KW/each | |
| 2 | Operation | Under normal pressure | |
| 3 | Discharge way | stainless steel underflow butterfly valve | |
| 4 | TEM show type | TEM controller | ≤ºC140 |
| 5 | Opening way | By manual | |
| 6 | Cold and heat type | Running water and Steam | |
| 7 | Main Technique | B.Design Volume: 1250L | |
| C.Capacity: 1000L | |||
| 8 | Material | Three jackets: Inner layer : SUS 316 2mm Middle layer: SUS304 4mm Out layer : SUS 304 4mm Jackets pressure: 0.25MPa | |
| 9 | Pressure show type | Pressure Gage | |
| 10 | Polishing | 300 mesh( the pot and other part outside) | |
| 11 | Voltage | 220V/380V 50HZ 3 phases | |
| 12 | Electric Appliance | Fully digital control | |
| 13 | Weld | Fully automatic welding, no dead corner | |
| 14 | Platform | SUS 304 frame, and the surface of platform is aluminum material. Two tanks amount in the work plat form together with ladder And all the work platform will be covered by stainless steel material | |
| 15 | Control system | Manual with electronic control case.material is SUS304 | |
| 16 | Homogenize seal type | Mechanical seal | |
| 17 | Dimension | Dia1430*H1000mm(customized) | |
| 18 | Gross.Weight | 1500KG | |
