Chinese Best Quality Mini Self Loading Auto Concrete Mixer Slm4 with 4m3 Max Output

Product Description

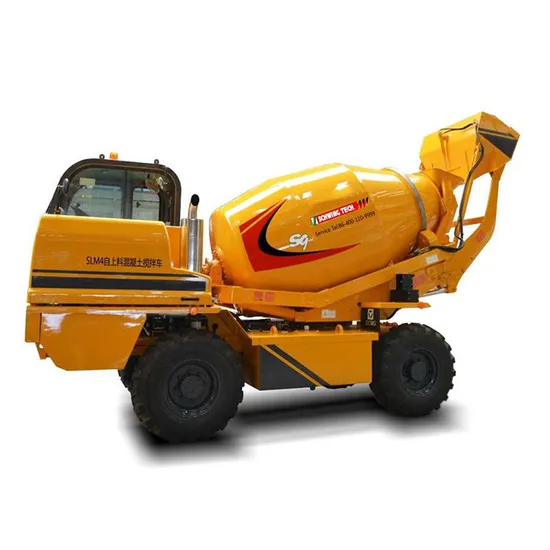

Chinese best quality mini self loading auto concrete mixer SLM4 with 4m3 max output
Description:
SLM4 self loading concrete mixer is a new 4-cube concrete mixer developed, with a maximum driving speed of 30km/h and a
production efficiency of about 12-14m3/ h. All bucket action through the pilot handle to achieve.
Advantages and Highlights:
1. Multi-function integration
Self loading concrete mixer is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction. 2. Hydrostatic transmission
The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.

3. Weighing system
The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%.
Parameter:

Item	Unit	SLM4
Engine		82KW@2200rpm (ChinaII)
Geometrical capacity of drum	m3	5.3
Max.output	m3	4
Transmission system		Hydrostatic; variable pump wih variable motor; four wheel dive
Vehicle speed	Km/h	0~30
Cab		Closed type; bucket movement operated by Joystick
Rotation angle of mixing drum		255
Electrical system		Generator(28V-55A); Accumulator(24V-180Ah)
Max. gradeability	%	44
Bucket	L	600
Water/fuel oil/hydraulic oil tank	L	900/100/140
Wheel base/wheel center distance	mm	2600/1988
Inner/outer turning radius	mm	2120/4340
Outline dimension-travelling state	mm	6100*2425*4008
Curb mass	Kg	8800
