Euchips 20W Dali Constant Current Dimmable LED Driver for LED Lighting

Product Description

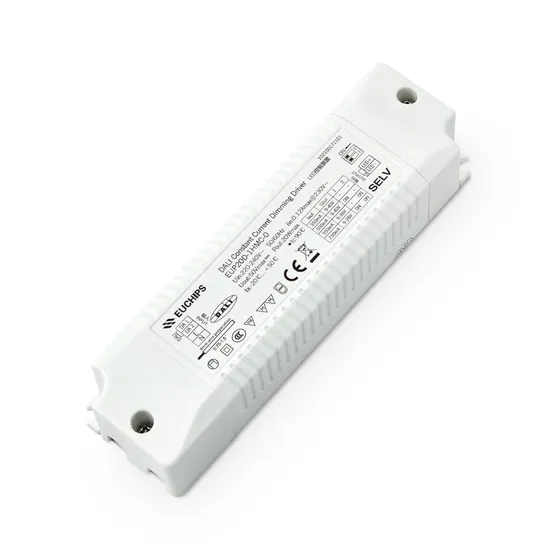

Product Description 20W Constant Current DALI-2 Driver EUP20D-1HMC
EUP20D-1HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP20D-1HMC can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 ed2.0
3. Support Touch-DIM function
4. High efficiency up to 85%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over Voltage
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters

Model	EUP20D-1HMC
Input	Efficiency	85%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency	50/60Hz
	Power Factor	≥0.95@230VAC,Full load
	THD(full load)	<10%@230VAC, Full load
	AC Current(max)	0.12Amax@230VAC
	Inrush Current(max)	Cold start,20A@230VAC 100us
Output	Current(mA)/Voltage (VDC)/ Power(W)	350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W 450mA/9-42VDC/18.9W 500mA/9-40VDC/20W 550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W
	Ripple Current	<3%
	Channel	1
	Current Tolerance	±7%
	Standby Power	<0.5W
	No load output voltage	55VDC Max
Function	Dimming Mode	DALI
	Dimming Range	0.3%-100%
Protection	Short circuit	after fault removed Close output ,the output current recovers automatically
	Over Load	Hiccup , recovers after fault condition is removed
	Over Voltage	Hiccup , recovers after fault condition is removed
Safety&EMC	Surge	L-N:1kV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	Safety Standards	EN61347, GB19510
	EMC Eission	EN55015, EN61000-3-2
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11 EN61547
Others	Working Temp.	-20ºC~50ºC
	Storage Temp.; Humidity	-40ºC~85ºC, 20-90%RH
	Tc	70ºC
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:70ºC
	Warranty Condition	5 years
	Switch Cycle	>25,000 times
	Packing Size	Net weight: 110 g±5%/PCS; 80 PCS/Carton; 9.3 kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H)
	Dimension	135*36*25mm(L*W*H)

FAQ A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Lead time?
Existing items: Within 1 day after payment received.
New items:About 4-6 weeks after payment received.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging

---
