wire cable puller wheel puller electrician pulling tools

Product Description

Product Description
wire cable puller wheel puller electrician pulling tools

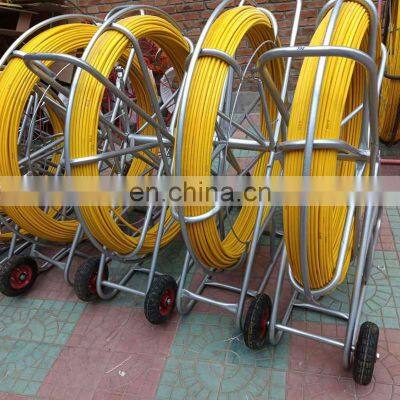

Fiberglass duct rodder is selected as a special tool for pulling electric cables and optical fiber cables in telecom, power industries, buildings and many other fields. The rod is made of fiberglass and high strength resin at high temperature, it is coated by high density polyethylene engineering plastic as its protected layer, which makes the duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, these make it safe for using in cable occupied duct. Along with pull head and handcart, it features easy to move and operate.
The FRP push pull rod will be equipped with different size of reels in accordance with the length of the rod, there are wheels on the reel to make it convenient for moving, it is an ideal tool for laying cables.

Specification	Rod Diameter (mm)	Φ4.5,Φ6,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,Φ18
	Rod Length (m)	30~500
	Frame Spec.(cm)	50*40*15, 67*55*16, 76*66*16, 95*90*48, 105*100*48, 130*120*48, 150*140*48
	Color	Blue, yellow, red, white etc
Material	Rod Inner	Extruded by fiber glass and high strength resin at high temperature
	Rod Outer	High Density polyethylene coating
	Frame	Steel with high-temperature Spray coating
	Wheel	Rubber
	Drawing head	Copper
Physical Characters	Density	55g/m
	Working temperature	-40°C to +80°C
	Breaking tension	100kg
	Bending Radius	295mm
	Technology	Pultrusion
Packaging	Inside	Plastic woven strip wind around the frame
	Outside	Carton, Wooden Pallet or Wooden Crate

Duct Rodder Feature:
•Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
•Fiberglass rod is lightweight and flexible.
•Outer protect layer are made of high density polyethylene and import material.
•Inner Core is E-Glass Fiber.
•Rod material is FRPI import solid core material.
•There are kinds of colors and size for the rod to choose.
Fiberglass Duct Rodder or Duct Rod can be packaged in Carton, Wooden Pallet or Wooden Crate.
If you need any more information or have any enquiries,
Please Contact me as following:

---
