4 Cubic Meters Self Loading Mobile Concrete Mixer Truck Price

Product Description

Factory Best Price 4.0m3 Mobile Self Loading Concrete Mixer
1.Advantages Of Our Concrete Mixer 1). Original Price: FOB, CNF/CFR, CIF
2). Certificates: CE, ISO
3). Promptly Delivery:15-20 days
4).Excellent After-sale Service and Customization Service.
5).High Efficiency
*Capacity: 14 cubic meters(18.31 cubic yards)/hour;
110 cubic meters (143.87 cubic yards)/day;
33000 cubic meters(43,162.44 cubic yards)/year
*Labor-saving
*4 wheel drive, 2 wheels steering
*Accurate Electric Weighing System
*The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle
*Combined the fountions of Loading, Weighing, Pumping, Mixing, Delivering and Discharging
2.Product Description

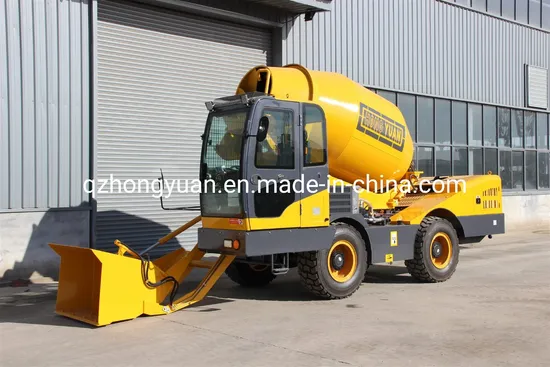

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with
a powerful engine and 2 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material. The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete
mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.

3.Main Features
1) The self mixing concrete truck can automatic feeding, measuring, mixing and discharging
concrete.
2) The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3) It has independent water supply system, which can ensure the high quality of concrete.
4) It just need one operator to drive, load, and mix raw material while moving it.

Name	Item	Specification
	Net	8300KG
	Gross	12675KG
	Transmission	Full Hydraulic
		4 wheels drive
	Brake	Air Brake
	Chassis	Off-road
	Tread	1880
	Wheelbase	2250mm
	Loader Bucket	Capacity			0.6m3
		Control			Hydraulic
	Tilt angle	30%
	Speed	High			0-25KM/H
		Low			0-9KM/H
	Mini turning radius	6.5M/R
	Tyre model	16/70-20
Engine	Type	Yunnei	Yuchai/ Cummins 4BTA3.9-c125
	Rated Power/RPM	92KW/2400RPM/125HP 2200RPM
	Max.Torque/RPM	460N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	Water Cooling
Maxing Drum	Drum capacity	3.5m³
	Bank Angle	16°
	Rotation Angle	10-16R/min
Chute	Swing Angle	≥60°
	Angle Control	Hydraulic
	Size	Long:176cm
		Short:40cm
Loader	Weighing model	Computer control
		Concrete standard		C15.C20.C25.C30
	Accuracy	Cement		≤±2%/time
		Relative Error		≤±3%/time
		Water		≤±1%/time
		Additive		≤±1%/time
		Admixture		≤±2%/time
Loader Control	Hydraulic 4 way stick

4.Company Information Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer
and exporter of wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient
transportation access. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world. We have over 100 employees to reach
an annual sales e that exceeds USD10,000,000, and we are currently exporting 100% of our product
worldwide. We also have approved Real CE Certificate through Germany TUV company.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,
ZL15,ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with
morethan 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift,
Sugarcane loader, Site Dumper, Self-loading concrete mixer, etc. As a result of our high quality products and
outstanding customer service, we have exported to Germany, Sweden, Finland, Poland, Norway,
Hungary, Austria, Belgium,Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda,
Russia, Japan, Korea, Malaysia, Indonesia, Vietnam, Cambodia, Australia, Canada, USA, Brazil, Argentina,
Uruguay etc.

If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
5.Packing & Delivery
One 40'HC container can pack 1 unit with disassemble the cabin, drum, tires, etc. by Sea. One 17.3M truck can pack 3 units with assembled by land.
6. Our Services
We major export to Europe market from 2010, include Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Malaysia, Australia, Canada, Brazil, Argentina, Uruguay etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or some counties in Europe or other regions.
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.
Contacts information
Sales Manager
Steven Bu
QINGZHOU HONGYUAN VEHICLES CO., LTD
No.1,NORTH OF BALI ROAD WEST OF JINSHUN ROAD,QINGZHOU CITY, SHANDONG PROVINCE, CHINA 262500Tel: 86+13455606353 Fax:86+536+3286206Company website: qzhongyuan.en.made-in-china.com
Any question, please don't desiate to contact me.

---
