Multi-Functional 4 Stroke 7HP 7.5HP 9HP 10HP Diesel Gasoline Rotary Cultivator 170f/173f/178f/186f Agricultural Machinery Small Power Weeder Mini Power Tiller

Product Description

Product Description

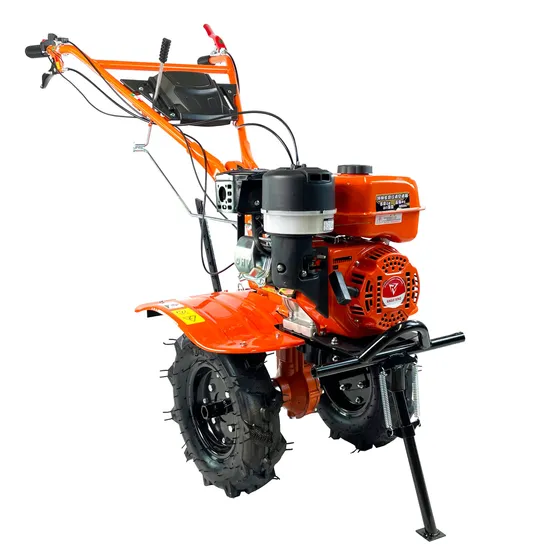

4-Stroke 170F Mini Power Tiller
The clutch of EAGLE SINO's Tiller adopts pressure plate friction clutch, which is simple in structure, easy to operate and reliable in use.
The gearbox body is made of die-casting aluminium alloy, which is light weight, wear-resistant and low cost, and the travelling box is made of cast iron, which has a stable and durable structure.
Matching power is 170F petrol engine, rated power is 4.0KW, the weight of the whole machine is 78kg, it has the advantages of small volume, light weight, good dynamics, easy to operate and so on.
The small wheel spacing of the travelling wheels of the micro-tiller can be used for easy ploughing and transferring between sloping land, large and small fields.
The whole machine adopts the patent technology of "emergency stop and flameout", and the wing adopts the patent installation technology, which ensures and improves the safety of users.

Product name			170 Gasoline Tiller Machine
Model Name			1WG4.0-100FQ-ZC
Specification Model			Handheld
Matching Engine	Model Name		170F/P Gasoline engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		4 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Petrol
Overall dimension(mm)			1680x1000x800 mm
Weights			70kg
Transmission mode			Gear
Connection mode			Direct connection
Adjustment of handrail		Horizontal direction	0 °
		Vertical direction	100°
Knife and roller		speed	Fast gear F:127 r/min Slow gear S:83 r/min
		Maximum turning radius	180 mm
		Total number of knives installed	24
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1000 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤35 kg/hm ²

Detailed Photos

★ New Design, Stronger Power
The Muffer can effectively absorb and attenuate the noise when the engine is running, reduce the noise interference to the operator and the surrounding environment, so as to improve the working efficiency.
★ Strong Adaptability
Air-cooled powered micro-tillers can not only work efficiently in a wide range of terrains such as drylands, paddy fields and orchards, but also adapt to the requirements of working in different environmental conditions
★ Protection of Machine Components
Mud fenders prevent mud from entering critical parts of the machine, such as the engine and transmission system, and extend the life of the machine.

Company Profile
Chongqing Eagle Sino Machinery Co.,Ltd, specializing in the production of power tillers, power weeder, cultivator, water pump, generators, brush cutters is located in No. 178 longtang dadao, longshui, dazu, chongqing, China. With a commitment to quality and innovation, we have established ourselves as a leading manufacturer in the agricultural machinery industry. Our factory covers an extensive area and is equipped with advanced production facilities and technologies. Our state-of-the-art assembly lines ensure efficient and precise manufacturing processes, allowing us to meet the growing market demand. Our team of highly skilled engineers and technicians possess extensive expertise in the design and development of micro tillers.
They constantly strive to improve the performance, durability, and functionality of our products to provide farmers with reliable and efficient tools for their agricultural operations. In addition to our focus on quality, we also place great emphasis on customer service. Our dedicated sales and support teams are always ready to assist customers with their inquiries and provide prompt after-sales support. With years of experience and a passion for excellence, our products are dedicated to delivering high-quality products and services to customers around the world, contributing to the modernization and efficiency of agricultural production.
Packaging & Shipping
FAQ
Q1:1 Do you support OEM/ODM?
A1:Yes.We can offer OEM/ODM service.
Q2:Are the engines of rotary tiller machines customizable?
A2:Yes. We can customize the engine according to customer's design.
Q3:What is your MOQ of power tiller?And how long is your processing time?
A3:1 sets. If there is no stock, it will be 10-20 working days, if there is stock, it can be sent out immediately.
Q4:How long is your warranty?
A4:1 year or 6 months warranty whichever comes first except the wearing and tearing parts.
Q5: What are your terms of payment?
A5: For large purchases, we can accept 30% deposit and 70% final payment when the goods are ready.
Q6: How do you ship and how long does it take to get there?
A6:We usually ship by express or ocean freight, other shipping ways are also available.
Q7:How do you handle product failures?
A7:First of all, our products are manufactured under a strict quality control system. And there is a strict inspection process before shipment. The rate of defective products and low. For defective batches, we will repair and resend them to you, or we can discuss a solution, including a re-recall, depending on the actual situation.

---
