One Year Warranty Gooda Manufacturer CNC Wire Cut Machine with GS

Product Description

Main Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
The best choice of surface milling machine for 220-800mm square workpieces,sales leading, Equipped with Japan Fanuc system, high efficiency.Machine base with rigid, one piece iron construction,Powerful vertical hydraulic clamping with one main cylinder.

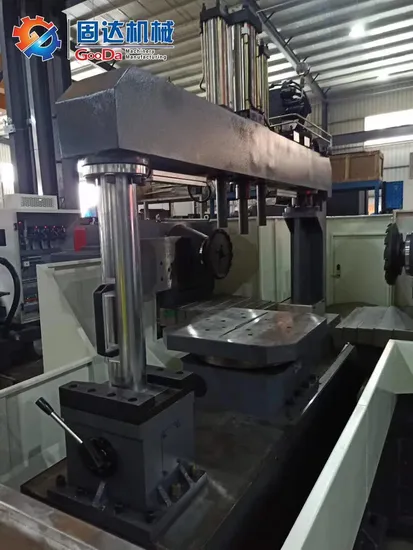

Detailed Pictures:
Specifications:

Items		Units	Model
			YG-850NC
Cutting Capacity	Control Axis	No.	4
	Max.Milling Size (L*W*H)	mm	800*800*240/290
	Min.Milling Size (L*W*H)	mm	220*220*20
	One time Cutting Capacity	mm	2*4.0
Travel	X axis	mm	390
	Y axis	mm	390
	Z axis	mm	1100
Feed Speed	X/Y/Z Max. rapid feed rate	m/min	8
	Max.Cutting feed rate	m/min	8
	Manual feed speed	mm/min	1-1500
Spindle	Spindle speed	Rpm	0-300
	Spindle taper	-	BT50
	Cutter diameter	mm	300 OP 350
Motor	Spindle servo motor	Kw	2*15 OP 22
	X/Y axis feed servo motor	Kw	3
	Z axis feed servo motor	Kw	3
	Rotary table Servo motor	Kw	3
	Clamper hydraulic motor	Kw	2.25
Work table	Worktable dimension	mm	600*600
	Max.Loading weight	Kg	2000
Hydraulic Clamper	Cylinder No.	Pcs	1 OP 3 OP 5
	Oil tank volume	L	60
Lubrication system	Lubricating oil tank	L	4
	Lubricating power	W	25
Floor space require (L*W*H)		mm	4.7*4.3*2.5
Machine weight		ton	15
CNC system			LNC CONTROL SYSTEM OR Mitsubishi M80-B controller

---
