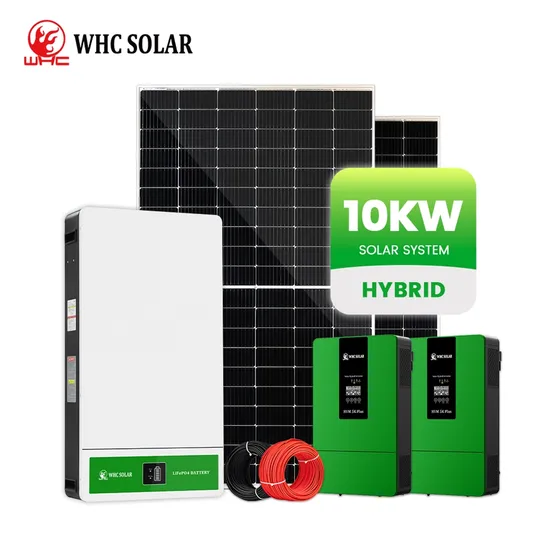

Whole House Hybrid Solar Power System 10KW 10Kwh Household Energy Storage System

Product Description

Product Description
WHC Solar Energy System also known as off-grid solar system is the most cost effective type for the solar system. It is a complete solar setup that comes with highly efficient solar panels.off-grid solar inverter, lithium ion battery or gel battery, and other standard solar accessories. This solar system will not only provide you continuous electricity but will also reduce your heavy electricity bills.
Product Parameters

WHC10KW-Li-10240KWH
Model	Specifications	Qty
HVM 5K Plus	48V5KW&MPPT500V80A	2
WHC-550M-144	Mono 49.6V550W	12
WHC-P-51.2V100AH	LiFePO4 Lithium 10240WH	1
PV Cable 100m	PV 6MM²	2
MC4	MC4 Connecter	8
Battery Cable	25 MM²	2
DATA Line	Communication Cable	2
Mounting System	Roof/Ground Support	1

Detailed PhotosSolar Hybrid Inverter1. WHC 48V 5KW Solar Inveter 2. 48V 5KW 3. PV Input:500V 80A 4. Output:220V 50Hz 5. Performance And Extend Lifecycle
6.High Efficiency Pure Sine Wave Inverter Mono Solar Panel 1. Model:WHC-550M-144
2. Max.Circuit Voltage: 34.2V
3. Max Power Current:13.11A
4. Open Circuit Voltage: 49.6V
5. Short Circuit Current: 14.05A
6. Dimensions: 2279*1134*35mm
7. Weight: 27.3KGSolar Lithium Battery
1. WHC-P-51.2V200Ah Lithium Battery2. Nominal Votage: 51.2V(48V)3. Capacity:200AH 4. Energy: 10240Wh5. Installation: Wall Mount6. Sizes: 442*820*142mmCertifications
