CNC Horizontal Deep Hole Drilling Machine for Large Holes

US$38,000.00-72,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

DHD 2018

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Movement Method

Linear Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Performance Classification

Economical CNC Machine Tools

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Model

DHD-2018

Item

CNC Deep Hole Drilling Machine

Workbench Size

L2000mm X W1200mm

Max. Drilling Depth

1600mm

Drill Hole Inner Diameter

Dia.2.5~38mm

Spindle Specifications

Bt40

X-Axis Displacement

1800mm

Y-Axis Displacement

1300mm

Z-Axis Displacement

1600mm

Transport Package

Standard Exporting Package

Specification

5800x4200x3000mm

Trademark

TEMY

Origin

China

HS Code

8459210000

Production Capacity

500 Sets/ Year

Product Description

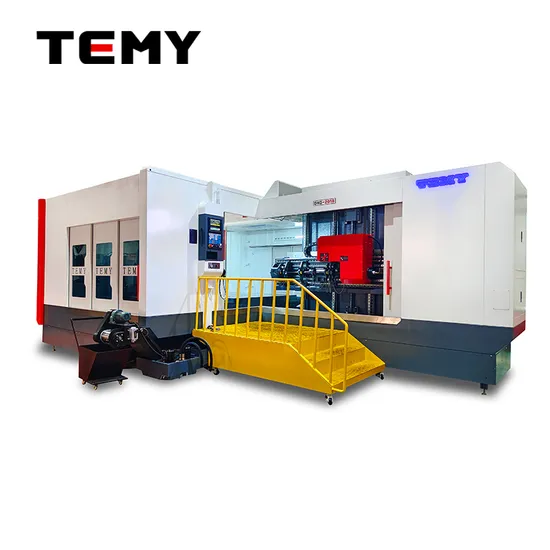

Horizontal deep hole drilling machine
Model# DHD-2018
It is a horizontal deep hole drilling machine for drilling deep holes. Its structure is horizontal, and the workpiece is placed horizontally during processing. It is mainly used for drilling holes with relatively large depth and diameter ratio on various materials (such as metal materials), such as the inner hole processing of gun barrels, barrels, hydraulic cylinders, etc.
Compared with ordinary drilling machines, it can better ensure accuracy and straightness when processing deep holes, and can effectively solve the problems of chip removal and cooling lubrication, so that the processing process is smoother and more efficient.

ITEM	UNIT	DHD-2018
Machining capacity
Drill hole inner diameter	mm	Φ2.5~Φ38
Max. drilling depth	mm	1600
Machining stroke
X-axis displacement	mm	1800
Y-axis displacement	mm	1300
Z-axis displacement	mm	1600
Workbench
Size (L × W)	mm	2000*1200
Max. Loading capacity	kg	15000
Speed and Main Spindle
Spindle taper hole		BT40
Max. spindle speed	rpm/min	6000
Feed rate	mm/min	1~300
System
Control system		SYNTEC(Standard) FANUC/Siemens/Mitsubishi/LNC/GSK(optional)
Power
Spindle motor power	KW	11 / 15
X-axis servo motor power	KW	5.9
Y-axis servo motor power	KW	5.9
Z-axis servo motor power	KW	3.1
Total power	KW	38
/Cooling System
Cooling tank capacity	L	800
Coolant pressure range	MPa	21
Coolant flow range	L/min	6~80
Chip conveyer system
Chip conveyor		Magnetic chip conveyor(Standard) / Chain or spring type(optional)
Size & Weigh
Machine weight	kg	14000
Machine size (L × W×H)	mm	5800×4200×3000
