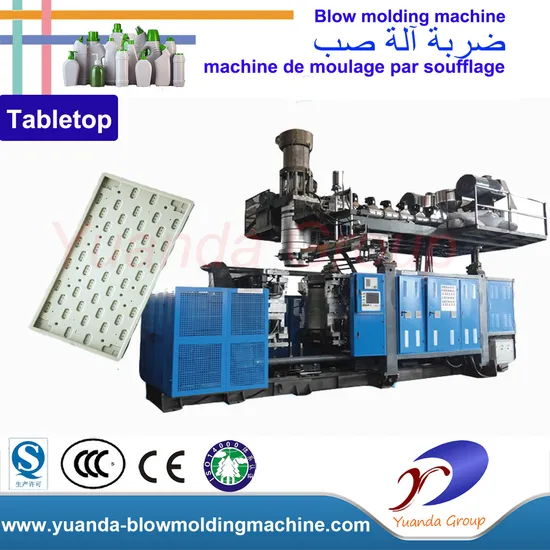

Modern Plastic Plastic Tables Chairs Manufacturing Machine Extrusion Blow Molding Machine

Product Description

Founded in 1970, Yuanda Group is committed to research and development and production of plastic molding equipment,Such as the Extrusion blow molding machine , PET blow molding machine ,Injection blow molding machine (IBM machine), Injection molding machine ect. including the peripheral equipment , such as refrigeration equipment and power generation system equipment. With more than 29 years old working expereice , we can offer the whole equipment for customer plastic factory produce complete project,and strong technical support and advanced complete sets of equipment for many customers in China and overseas.
Our Blow molding machine with best quality in China, due of our strong technical in this field. all important moving parts, we will study and check by computer simulation ADAMS and finite element analysis by ANSYS, advanced techincal in this field industry.so our machine with long life , win more and more good reputation from oversea.

assemblying machine , every process will be inspected by special person ,all work flow according to ISO9001 standard.our blow molding machine is best quality than others , because of our special manufactur process and best material , such as the following pictures.
Our Certification

The whole service flow is divided in pre-sale stage, manufacturing stage, installation stage and after sales service. Good communication and best advanced technical support for every customer, we always find out the best project for every customer .
Workflow Process
Our Advantages
Yuanda Group can supply the best complete line according to client product requirement
1. Advanced servo system , Moog valve from Japan , high precision and high speed , save energy and high efficient
2. Act as optional , client can choose the 3D manipulator, in order to reduce labor cost and improve production efficienty
3. Advanced hydraulic cylinder , all technical sourced from Germany , floating adjustable movement , quickly speed and quiet
4. Machine can connect with the leak tester in line , convenience , save labor cost
5. Heater cover material stainless steel with ceramic heater inside , safty , long life and energy saving 30%
6. Oil pump from USA , mainly parts from Europe, best quality

7. Flex arm clamping enhance template structure, strong Power , high precision !
8. Servo motor from Physis Italy , high speed , save energy and high efficient
9. Color control touch screen with Moog parision from Japan , more convenient operation ,with remote control module , we can remote debugging ,modify and maintain on line , it is very easy for client to solve all problems .
10. Machine can connect with the conveyor in line directly, convenience , save labor cost, save space
11. Hydraulic system and valves from Yuken Industry Japan
12. Aviation military-grade wire connector , stable ,safe and easy to install
Yuanda Group has gained huge trust from international customers based on providing high quality blow molding machines and perfect aftersales service. Yuanda machines have been delivered to America,Poland,Mexico,Colombia,Peru,Argentina,Chile,Indonesia,Malaysia,Vietnam,Saudi Arabia, South Africa,Egypt and so on.
about many other advanced technical data, please require me !

Name	Units	YD100
Max, product volume	L	120
Dry cycle	PC/H	360
Screw diameter	MM	100
Screw L/D ratio	L/D	28
Screw drive power	KW	55
Screw heating capacity	KW	22
No, of heating zone	ZONE	5
Outpul of HDPE	KG/H	200
oil pump drive power	KW	22
Camping force	KN	600
Max,size of mold	MM	1000*1300
Template size	L	14
Template size	MM	1150*1150
Mold stroke	MM	550-1350
Max,die diameter	MM	450
Die heating power	KM	21
No. die heating zone	ZONE	5
Bolwing pressure	MPA	0.8
Air volume	M³/MIN	1.6
Cooling water pressure	MPA	0.3
Water consumption	L/MIN	150
Size of machine	L*W*H	5.4*2.5*4.5
Weight of machine	TON	15

Due to the company's fast technology update and technical confidentiality,for blow molding machine,Extrusion Blow Molding ,Injection blow molding machine ,PET blow molding machine , injection molding machine , blowing mould,plastic bottle making machine,plastic bottle mould ,bottle machine , relevant advanced technical parameters must be consulted our sales engineers.

---
