DD40E\2 FINCM Multi Spindle Deep Hole CNC Gun Drilling Machine

Product Description

Product Description

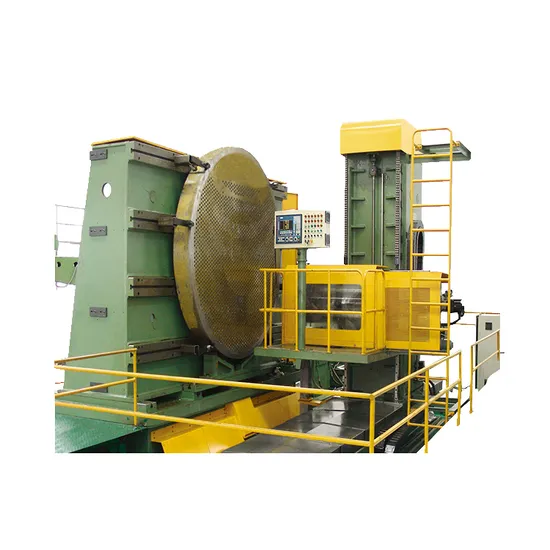

DD40E/2 FINCM CNC Double-Spindle Horizontal Deep Hole Hydraulic Drilling Machine 4000mm*800mm (Diameter*Thickness)
Detailed Photos
Main Technical Specifications:

Parameter name	Project		Parameter value
Processing range	Maximum workpiece diameter		Φ4000mm
	Borehole diameter		Φ14~φ40mm(BTA drill)
	Maximum drilling depth		800mm
Drilling head	Quantity		2
	Spindle center distance (adjustable)		170~220mm
	Spindle speed		200~2500r/min
	Spindle variable frequency motor power		2×15kW/20.5kW
Longitudinal slide movement (x-axis)	Travel		4000mm
	Maximum movement speed		4m/min
	Servo motor power		4.4kW
Vertical slide movement of column (Y-axis)	Travel		2000mm
	Maximum movement speed		4m/min
	Servo motor power		7.7kW
Movement of double spindle feed slide (Z axis)	Travel		900mm
	Feed rate		0~4m/min
	Servo motor power		2.6kW
Hydraulic system	Hydraulic pump pressure / flow		2.5~4MPa,25L/min
	Motor power of hydraulic pump		3kW
	Capacity of hydraulic oil tank		120L
Cooling system	Cooling pump pressure / flow		6.5MPa,2×200L/min
	Cooling pump motor power		2×22kW
	Cooling tank capacity		3000L
	Industrial refrigerator power		14kW
	Flux of magnetic roller paper tape filter		2×200L/min
	Filtration accuracy		25μm
Chip removal	Chip conveyor type		Flat chain
	Chip removal speed		2m/min
	Chip removal motor power		0.75kW
	Pump motor power / flow		2×1.5kW/2×200L/min
Electrical system	Numerical control system		Siemens 828D
	Number of NC axes		3
	Total power of motor		About 125kW
Machine tool dimensions	Length × width × height		About 14×7×6m
Machine weight			About 85tons
Accuracy	X-axis positioning accuracy		0.06mm/ overall length
	X-axis repeat positioning accuracy		0.03mm
	Positioning accuracy of y-axis		0.06mm/ overall length
	Y-axis repeat positioning accuracy		0.03mm
	Tolerance of hole spacing		±0.10mmDrilling face
			±0.3-0.8mm/800mmDrill out
	Hole roundness		0.02mm
	Aperture accuracy		IT9~IT10

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:

NO	Name	Brand	Country
1	linear guide rail	HIWIN/PMI	Taiwan(China)
2	Numerical control system	Siemens	Germany
3	Feed servo motor	Siemens	Germany
4	Spindle servo motor	Siemens	Germany
5	Grating ruler	FARGOR	Spain
6	Oil pump	JUSTMARK	Taiwan(China)
7	Hydraulic valve	ATOS/YUKEN	Italy / Japan
8	Planetary gear reducer	APEX	Taiwan(China)
9	Switch, button, indicator light	Schneider/ABB	France / Germany
10	Automatic lubrication system	HERG	Japan

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
