Vertical Plastic Injection Moulding Machine for Injection Molding Machinery

Product Description

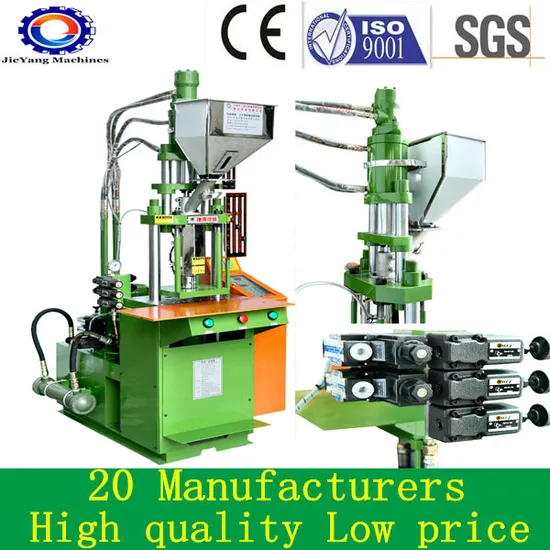

JieYang Vertical Plastic Injection Molding Machine
Main Features:
1) Straight screw ejected assembly.
2) Two(three)-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.
3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.
4) Low-pressure closed die assembly can protect the safety of die.
5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.
6) Can be installed a single mold or double shuttle table.
Product Description
Specification of vertical plastic Injection molding machine:

MODEL	UNIT	JY-200ST		JY-250ST			JY350ST			JY-500ST
Screw Barrel Diameter	mm	28	30	26	28	30	30	32	34	32	34	42
Injection Pressure	kg/cm2	1019	896	1530	1278	886	1171	996	820	1642	4385	960
Max.Shot Weight	g	58	67	56	67	74	74	84	106	102	123	176
Clamping Force	Tons	25		35			45			55
Platen Size	mm	480x310		540x380			580x430			670x480
Distance Between Tie Bere	mm	310x175		375x205			410x250			470x280
Min. Mold Height	mm	100/30		158/58			220/70			270/70
Opening Stroke	mm	180		180			200			200
Max. Opening Mold Distance	mm	280/210		338/238			420/270			470/270
Ejetor Force	Tons	1.3		1.3			1.76			1.76
Ejetor Stoke	mm	35		35			35			35
Oil Resservoir Capacity	L	100		100			130			150
Cooling Water Consumption	L/hr	400-600		400-600			600-800			800-1000
Pump Motor Power	KW/HP	3.75/5		3.75/5			5.5/7.5			7.5/10
Machine Weight	Tons	1.0		1.5			2.4			3.0
Machine Dimension(LxWxH)	m	1.4x0.90x2.37		1.55x0.93x2.45			1.7x1.2x3.0			1.85x1.2x3.0
Shipping Weight	Tons	1.3		1.8			2.7			3.4
Shipping Measurements(LxWxH)	m	1.7x1.1x2.23		1.76x1.15x2.3			1.92x1.3x2.3			2.1x1.4x2.3

Mold platen of vertical plastic Injection molding machine:
Machine Main Products
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.
Please contact us,we will provide you professional injection molding program.
Machine Details
Packaging and Shipping
1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.
3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
Company Information
Welcome to visit our factory to view more details.
FAQ

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

---
