Product Description
Product Description
good quality wood hammer mill crushers
Application of wood chipper :
Our company produces the chipper disc chipper, wood chipper, miscellaneous wood chipper, wood
chipper is the production of high quality wood a special wood chipper, widely used in papermaking,
particle board factory, and high density fiberboard factory, stubble factory, biomass power plant,
wood factory, and other industrial and manufacturer of production preparation section before the
preferred equipment. The main cutting raw material is peeling after the trail wood, bamboo, slab
materials and cutting time fuelwood excess material, etc.
Structure composition of wood chipper :
Mainly by the stand, feed port, cutter, casing, chipping blade and electronic component, the machine
can according to need to adjust the peel and cut blade, the production of different specifications
and thickness of the chip.
The main technical parameters of wood chipper machine:
Model
| Blades
| Entrance dimension (mm)
| Cutter diameter (mm)
| Blades dimension (mm)
| Capacity (t/h)
| Speed of spindle
(r/min)
| Power (kw)
| Dimension (mm)
|
TZ420
| 3
| 150*150
| 420
| 150*70*8
| 0.6-1.5
| 600
| 7.5
| 1200*500*800
|
TZ600
| 3
| 180*150
| 600
| 200*100*10
| 1.5-3
| 600
| 15
| 1500*570*1050
|
TZ700
| 3
| 190*200
| 650
| 230*120*12
| 2-6
| 600
| 18.5
| 1500*680*1100
|
TZ800
| 4
| 200*200
| 735
| 230*120*12
| 3-8
| 550
| 30
| 1850*730*1240
|
TZ950
| 4
| 230*250
| 830
| 250*120*12
| 5-10
| 550
| 37
| 1900*820*1500
|
TZ1150
| 4-6
| 300*330
| 1150
| 340*150*14
| 8-13
| 600
| 75
| 2560*1150*1800
|
TZ1410
| 4
| 400*400
| 1410
| 480*170*18
| 10-16
| 600
| 110
| 2900*1400*2350
|

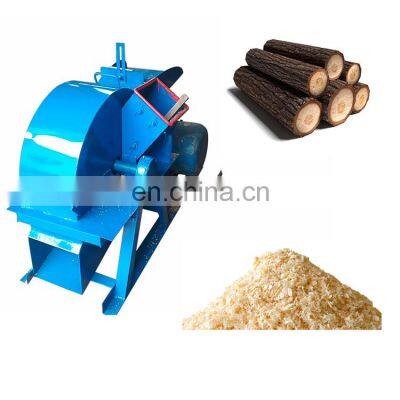

The pictures of wood chipper:
