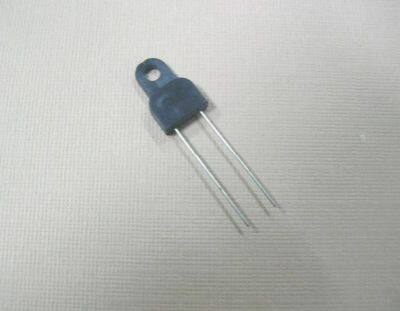

Industrial power backup NTC sensor:THERM-O-DISC ASN1H103K/10J1H0064

Product Details

Product Description

Product Description
Therm-O-Disc developed NTC sensor packages especially for the PCB / electronics market. These NTC sensor products are intended to be soldered directly on a printed circuit board.
Applications
• Heat sink monitoring
• Surface temperature monitoring for power supplies, power amplifiers,industrial power backup
• Motor controllers
Operating Temperature Range: -40° to 200°C
Thermal Time Constant: 12 seconds typical (oil) 25°C/85°C
Dissipation Constant: 2mW/°C
Dielectric Withstand: 1500 VDC
Resistance vs. Temperature Multiplier Values:
Description:NTC THERM 10K 10% SCREW MNT PCB RAD
Beta 25°C/75°C=3965+/-2%
R25°C=10KΩ+/-10%
MFR: THERM-O-DISC
MPN: ASN1H103K , 10J1H0064

---
