US$100,000.00-300,000.00
|
1 Set
(MOQ)
|
Basic Info.
Pipe Material
Carbon Steel
Type
Pipe Production Line
Product Name
Vzh-76 Round Square and Rectangle Steel Pipe Makin
Cutting System
Cold or Hot Flying Saw
Control System
PLC (Imported Brand)
After Warranty Service
Video Technical Support, Online Support etc
Certification
CE, ISO, SGS
Round Pipe Diameter
4 mm to 273 mm
Round Pipe Wall Thickness
0.2 mm to 12 mm
Square/Rectangle Size
8*8 mm to 260*130 mm
Square/Rectangle Wall Thickness
0.25 mm to 11 mm
Export Port
Shanghai Port
Advantages
Roller Quickly Change in 10 Min
Machine Color
Green or Blue ( Can Be Customized)
Keyword
Tube Mill Machine
Transport Package
Wooden Case
Specification
2000*6000*1000
Production Capacity
200 Sets Per Year
Product Description
VZH-63 ERW Pipe Making Machine Carbon Steel Pipe Tube Mill
Product Description
Accumulating more than 20 years of professional manufacturing experience in steel pipe making machine,NEW VICTOR specializes in supplying VZH-12~VZH-273 ERW tube mill machine.we devotes to technological researching and quility inproving.meanwhile the ERW tube mill is featured with high-strength design, material selection,precision machining, stable operation and energy conservation. Thus we have won outstanding reputation and wide patronage from overseas and domestic customers.
According to customers' feedback: too much time wasted on changing the roller. New Victor developed roller quickly change system.The system can replace the roll in 20 minutes,saving a lot of labor and time.

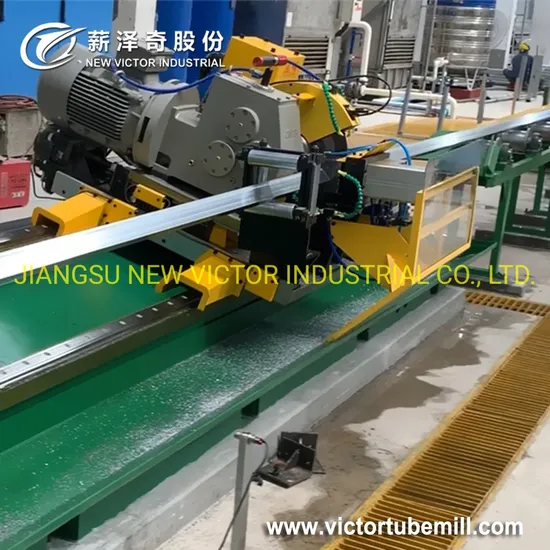

Detailed Photos
Product Parameters
Model | Tube O.D.(mm) | Thickness (mm) | Square & Rectangle (mm) | Thickness(mm) | Speed (m/min) |
VZH-12 | Ø4~Ø12 | 0.2~0.5 | - | - | 30~120 |
VZH-16 | Ø6~Ø16 | 0.2~0.8 | - | - | 30~120 |
VZH-20 | Ø7~Ø20 | 0.2~1.0 | - | - | 30~120 |
VZH-25 | Ø9~Ø25.4 | 0.25~1.2 | - | - | 30~120 |
VZH-32 | Ø10~Ø31.8 | 0.25~1.5 | 8×8 ~ 25×2 5 10×6 ~ 30×20 | 0.25~1.2 | 30~120 |
VZH-32z | 0.3~2.0 | 0.3~1.5 | 30~100 |
VZH-40 | Ø12.7~Ø40 | 0.3~1.8 | 10×10 ~ 30×30 20×10 ~ 40×20 | 0.3~1.5 | 30~110 |
VZH-40z | 0.4~2.0 | 0.4~1.5 | 30~100 |
VZH-50q | Ø16~Ø50.8 | 0.4~1.5 | 12.7×12.7 ~ 40×40 20×10 ~ 50×25 | 0.4~1.2 | 30~110 |
VZH-50 | 0.5~2.0 | 0.5~1.5 | 30~90 |
VZH-50z | 0.6~2.5 | 0.6~2.0 | 30~80 |
VZH-63q | Ø19.05~Ø63.5 | 0.6~2.0 | 15×15 ~ 50×50 20×10 ~ 60×30 | 0.6~1.5 | 30~90 |
VZH-63 | 0.7~3.0 | 0.7~2.5 | 30~80 |
VZH-63z | 0.8~3.5 | 0.8~3.0 | 20~70 |
VZH-76q | Ø25.4~Ø76.2 | 0.8~2.5 | 20×20 ~ 60×60 30×15 ~ 80×40 | 0.8~2.0 | 30~90 |
VZH-76 | 0.8~3.5 | 0.8~3.0 | 30~80 |
VZH-76z | 0.8~4.0 | 0.8~3.5 | 20~70 |
VZH-90q | Ø30~Ø90 | 0.8~3.0 | 25×25 ~ 70×70 30×20 ~ 80×40 | 0.8~2.5 | 30~90 |
VZH-90 | 0.8~3.5 | 0.8~3.0 | 30~80 |
VZH-90z | 0.8~4.0 | 0.8~3.5 | 20~70 |
VZH-100q | Ø31.8~Ø101.6 | 1.0~3.0 | 25×25 ~ 80×80 30×20 ~ 100×50 | 1.0~2.5 | 30~90 |
VZH-100 | 1.0~3.75 | 1.0~3.0 | 30~80 |
VZH-100z | 1.0~4.25 | 1.0~3.5 | 20~70 |
VZH-114q | Ø35~Ø114.3 | 1.0~3.0 | 30×30 ~ 90×90 40×20 ~ 120×60 | 1.0~2.5 | 30~80 |
VZH-114 | 1.2~4.5 | 1.2~4.0 | 20~70 |
VZH-127q | Ø40~Ø127 | 1.2~3.5 | 30×30 ~ 100×100 40×20 ~ 120×80 | 1.2~3.0 | 20~70 |
VZH-127 | 1.5~5.0 | 1.5~4.5 | 15~60 |
VZH-140q | Ø50~Ø141.3 | 1.2~4.0 | 40×40 ~ 110×110 50×30 ~ 150×70 | 1.2~3.5 | 15~60 |
VZH-140 | 1.5~5.5 | 1.5~5.0 | 15~60 |
VZH-168q | Ø60~Ø168.3 | 1.5~5.0 | 50×50 ~ 130×130 60×40 ~ 160×80 | 1.5~4.5 | 10~50 |
VZH-168 | 2.0~6.0 | 2.0~5.5 | 10~50 |
VZH-168z | Ø76.2~Ø168.3 | 2.5~8.0 | 60×60 ~ 130×130 80×40 ~ 160×80 | 2.5~7.0 | 10~40 |
VZH-219q | Ø89~Ø219.1 | 2.0~6.0 | 70×70 ~ 160×160 100×50 ~ 200×100 | 2.0~5.5 | 10~40 |
VZH-219 | 3.0~8.0 | 3.0~7.5 | 10~40 |
VZH-219z | 4.0~10.0 | 4.0~9.0 | 10~40 |
VZH-273 | Ø114.3~Ø273 | 4.0~10.0 | 90×90 ~ 200×200 120×60 ~ 260×130 | 4.0~9.0 | 10~40 |
VZH-273z | 4.5~12.0 | 4.5~11.0 | 10~35 |
Certifications
Company Profile
Jiangsu New Victor industrial Co., Ltd. is a high-tech private stock listed company, the company focuses on high-frequency direct seam welding pipe equipment for 17 years, We are a high-tech enterprises which contains design, production, manufacturing and technical consulting. Through continuous research and development, the company has more than 20 patents, leading the definition of product quality and service efficiency of new standards.
The company's VZH series of machines with high strength design, rigorous material selection, full heat treatment, precision processing, fine assembly, stable operation, high efficiency, energy saving and consumption reduction, welding pipe metal material diversification and other excellent features, the comprehensive performance of the unit has reached international standards, the production of Ф8mm~Ф273mm welded steel pipe products of good quality, high precision, high added value, Our equipment has been exported all over the world, has been unanimously praised.
Now, our company has more than 200 employees over the world, more than 30 technical research and development personnel, while ensuring continuous product innovation, the company also has a professional after-sales service team of more than 20 people to provide global door-to-door installation and commissioning services.
Jiangsu New Victor industrial Co., Ltd. warmly welcome Chinese and foreign merchants to come to guide, negotiate cooperation, we will sincerely provide you: more durable, more high-speed, more precision high-frequency welded pipe units, Create a better tomorrow hands in hands!
After Sales Service
The sample service1.We can send you the video of the running machine.2.You are welcome to come to visit our factory,and see the machine running.
Customized service 1.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.After-sales service 1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time. 4.We provide one year warranty5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese6 .24 hours for engineer response.7 .12 Months guarantee and life-long technical support. 8.Your business relationship with us will be confidential to any third party.9. Good after-sale service offered, please get back to us if you got any questions.
Quality ControlWe have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
>>
