US$27,999.00-46,999.00
|
1 Set
(MOQ)
|
Basic Info.
Raw Material
PE,PP,PVC,PA....
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
50 Years
Max.Product Capacity
2L;5L;15L
Clamping Force
90kn;110kn
Screw Dia.
50mm;65mm;75mm
Transport Package
Wooden Box
Specification
3.7*2.1*2.8m
Production Capacity
300 Sets/Month
Product Description
Product Description

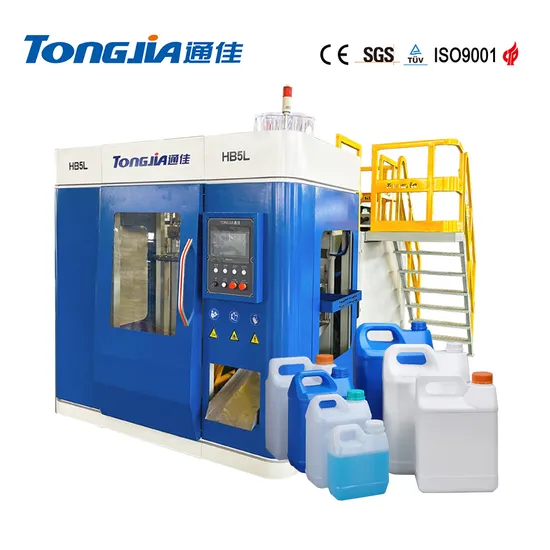

Tongjia TJ-HB series single-station hollow blow molding machine is mainly composed of extrusion system,mold opening
and closing system, die head system, hydraulic and pneumatic system and electrical control system.
This series of blow molding machines can be equipped with single, double and multi die heads and single, double and
multi-layer composite die heads according to customer needs. It can manufacture blow molding machines suitable for processing
various special shaped and special raw materials for users, and can be used for processing PE, PP, ABS, EVOH, TPU and other
products.
This series of equipment is suitable for producing hollow products such as plastic bottles, barrels, cans, etc., ranging from 10 ml
to 15 liters. Such as: milk bottles, oil jugs, detergent bottles, laundry detergent barrels, wine jugs, vinegar jugs, etc.
Configuration |
Clampingsystem | Single work station translation + High-precision linear guideway |
Extrusion system | Hardened face gear reducer + Imported frequency inverter |
Die system | Special steel center-feeding die |
Hydraulic system | AlI imported hydraulic valve, seal parts + Electro-hydfaulic proportional control |
Control system | Imported PLC + Imported Human-machine interface + PLC automatic temperature control module |
Parameters |
Specifications | Units | TJ-HB2L | TJ-HB5L | TJ-HB15L |
Material | | PE PP.PVC.PA … | PE PP.PVC.PA … | PE PP.PVC.PA … |
Max.product capacity | L | 2 | 5 | 15 |
Die quantity | Set | 1.2.3.4 … | 1.2.3.4… | 1.2.3.4 … |
Machine dimension | M | 2.9X2.1X2.4 | 3.7X2.1 X2.8 | 3.8X2.3X3.1 |
Machine weight | Ton | 3.2 | 7.8 | 8.3 |
Die-head | | | | |
Max.diameter of die | mm | 70 | 140 | 150 |
Center distance of double die | mm | 120 | 160 | 180 |
Die head heating power | KW | 5.2 | 9.4 | 11.3 |
Die head heating zone quantity | zone | 3 | 3 | 3 |
Clamping Unit | | | | |
Clamping force | KN | 90 | 90 | 110 |
Distance between platens | mm | 135-485 | 230-620 | 230-620 |
Toggle stroke | mm | 400 | 500 | 500 |
Mold platen size | mm | 320X380 | 320X380 | 380X425 |
Extruder unit | | | | |
Screw diameter | mm | 55 | 65 | 75 |
Screw L/D ratio | L/D | 25 | 25 | 25 |
HDPE plasticizing amount | Kg/h | 60 | 70 | 90 |
Screw heating zone quantity | zone | 3 | 3 | 3 |
Screw heating power | KW | 10.8 | 13.8 | 14.2 |
Extruder driving power | KW | 15 | 15 | 22 |
Power | | | | |
Total power consumption | KW | 42 | 49.2 | 58 |
Hydraulic drive power | KW | 11 | 11 | 11 |
Cooling water consumption | m3/h | 2 | 3 | 4 |
Cooling water pressure | Mpa | 0 3-0.6 | 0 3-0.6 | 0 3-0.6 |
Air pressure | Mpa | 0.8 | 0.8 | 0.8 |
Air consumption | m3/min | 0.4 | 0.8 | 1 |
