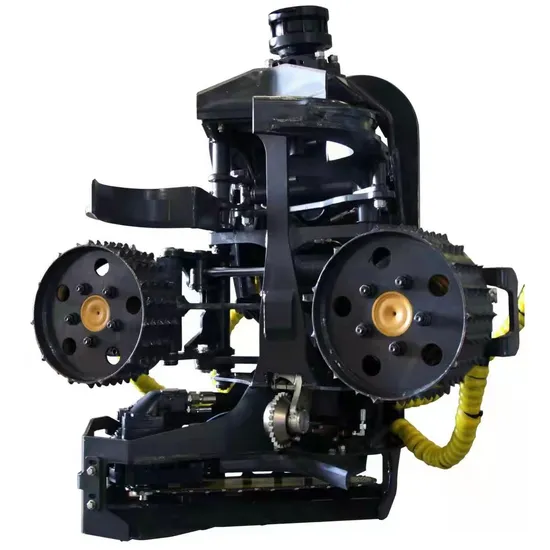

Round Crusher Log Cutter and Splitter Machine Tree Harvester for Excavator

Product Description

Tree harvester is beautiful, durable, stable, and coordinated in action, with functions such as cutting down, cutting branches, length measurement, segmentation, return to dimension, etc., its operation is intelligent, coordinated in action, accurate and efficient, and it is widely used in all kinds of rapid-growing and high-yield forest operations. Specification

Model	Unit	RTH35	RTH60
Chain saw
Max. cuting diameter	mm	350	640
Guide bar length	mm	457.2	750
Chain pitch	mm	10.3	10.3
Capacity of chain oil tank bar	L	3.4	8
Feeding
Rollers quantity	ps	2	3
Rollers diameter	mm	371	400
Max. opening of rollers	mm	400	600
Max. feed force	KN	16	25
Max. feed speed	m/s	5	0~6m/s
Delimbing
Knives qty	/	2 + 1	2+2+1
Diameter tip-to-tip	mm	330	400
Front knives max. opening	mm	480	640
Maximum opening for rear blade	mm	/	650
Hydraulic requirement
Operating hydraulic	MPa	22.5	28
Flow required	L/min	150-180	280-300
Power required	KW	40-60	130-140
Control system
Operating vdtage	V	24	24
Control system	YUCHAI	Y01T1 .1
Application
Excavator	T	8~15	12-28
Technical specification
Width (head closed/head open)	mm	870/1130	1500
Length	mm	1140	1445
Height	mm	1100	1530
Weight	kg	560	1050

Details Images

---
