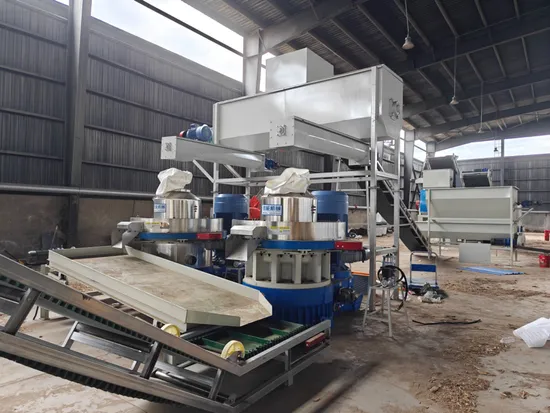

High Power Wood Sawdust Pellet Mill High Efficiency Energy Vertical Ring Die Wood Pellet Machine

Product Description

Biomass Wood Pellet Machine is a competitive product offered by Jinan Jinneng Machinery Co., LTD. Specializing in designing and manufacturing biomass pellet machinery and complete production lines with advanced technology. The Wood Pellet Production Line is ideal for agro-forestry residues such as straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit branch, pulverized coal, and waste paper.
The machine features a refined stainless steel mold for a longer service life, double-layer design for extended use, and automatic lubrication with a circulating pump for smooth operation and bearing protection. With low energy consumption, high efficiency, and exceptional durability, our wood pellet production line is a reliable choice. All accessories and components are produced in-house to ensure quality control.

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
JN560	90+1.5+0.37+1.5	1000-1200	4200	2300x1250x1950
JN560P	110+1.5+0.37+1.5	1200-1500	4500	2300x1250x1950
JN560X	132+1.5+0.37+1.5	1500-2000	5000	2300x1250x1950
JN700	160+1.5+0.37+1.5	1500-2000	6200	2800x1400x2100
JN850	220+3+0.37(0.55)+2.2	2000-3000	14500	3200x1630x2300

How to Make Pellets
How to Make Pellets Learn how to make pellets with ease using the following steps:

Use a Wood Chipper or Wood Crusher to break down wood logs, chips, or other materials into smaller pieces.
Utilize a Dryer, such as a rotary drum dryer or air-flow dryer, to reduce the moisture content of the sawdust or other materials to between 8-15%.
Gradually feed the sawdust or materials into the pellet machine, ensuring a stable feeding with a screw feeder for large-scale production.
Cool the pellets using a pellet cooler after pelletizing.
Pass the pellets through a vibrating sieve to separate good pellets from broken ones or powder for reproduction.
Finally, pack the pellets efficiently using a pellet packing machine.

For top-quality pellet production equipment, trust Jinan Jinneng Machinery Co., LTD to provide reliable solutions.
Scope Of UseRing mold granule machine, widely used in large, medium and small aquaculture, food feed processing plants, livestock farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small feed processing plants. Ring mold particle machine is also a kind of particle equipment commonly used in the biomass energy industry is the biomass raw materials such as: branches, stalks, crushed into rod particles, fuel molding equipment to replace coal.
Product use Vertical ring die granulator is a machine for developing dry powder into required particles. According to its use, it can be divided into feed granule machine, wood pellet machine, straw scale pellet machine, rice husk pellet machine, sawdust pellet machine, fuel pellet machine, biomass pellet machine, fertilizer pellet machine, organic fertilizer pellet machine and so on.
Product Mix
The mold is vertical and double layered, with dual use of upper and lower layers, improving utilization, reducing costs, and increasing efficiency.
The pressure wheel rotates, the material is centrifuged, and the surrounding material is evenly distributed.
Efficient and energy-saving, automatic timed oil lubrication, ensuring sufficient lubrication of bearings and safer and more reliable operation.

---
