Factory Direct Sale Hydraulic Press Z3050x16/I Arm Radial Drilling Machine with CE ISO

Product Description

Factory Direct Sale Hydraulic Press Z3050x16/I Arm Radial Drilling Machine with CE ISO
Product Description
Product Parameters
The main performance characteristics:
Hydraulic clamping
Mechanical speed
Mechanical pre-selection
Electrical machinery double insurance
Centralized mechanical change speed
Hydraulic column ,rocker arm clamping
Product main technical specifications:

SPECIFICATIONS	Z3050×16/I
Max.drilling dia (mm)	50
Distance from spindle nose to table surface (mm)	180-1140
Distance from spindle axis to column surface (mm)	350-1550
Spindle travel (mm)	310
Spindle taper(MT)	5
Spindle speeds range(r.p.m)	29-1366
Spindle speed steps	12
Spindle feeding range(mm/r)	0.10-0.40
Spindle feeding steps	4
Rocker rotary angle (°)	±90°
Main motor power( kw)	4
Movements motor power (kw)	1.5
Weight (kg)	3000
Overall dimensions (mm)	2200×900×2550

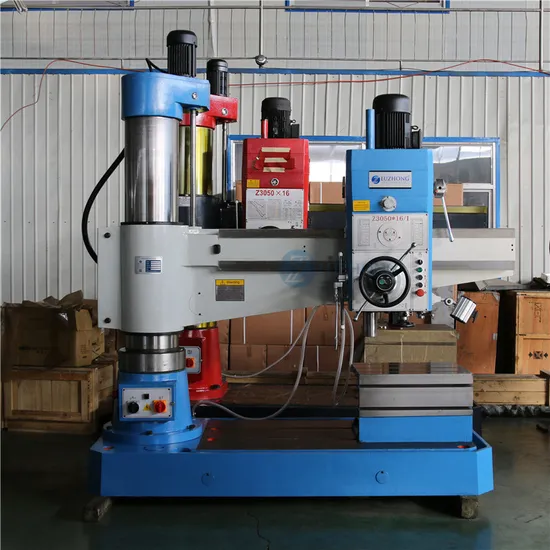

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
