High Quality Hot DIP Galvanzied Eye Bolt

Product Description

High quality hot dip galvanzied eye bolt

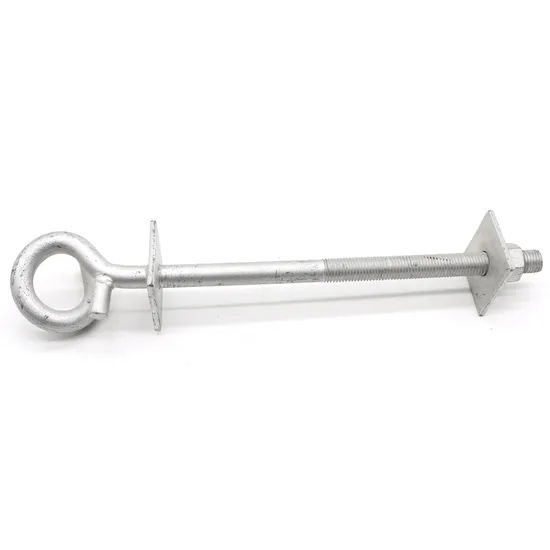

Name: Forged Oval Eyebolt
Nombre: PERNO CON OJAL
Model:CD
Material: Carbon steel
Finish: Hot Dip Galvanized
Size: 5/8", 3/4"
Length: 4" to 12"
Features: Used for guying, dead-ending, and attaching clevis, suspension insulators and other poleline hardware, herrajes galvanizados. Each oval eye bolts is provided with a regular square nut. All components are hot dip galvanized to meet ASTM A153, Class C specification.

CATALOG NUMBER	BOLT DIMENSION DIA. A B	MINIMUM TENSILE STRENGTH	APPROX. WEIGHT PER 100
EB586S	5/8'' 6'' 4''	12400 LBS.	100
EB588S	5/8'' 8'' 4''	12400 LBS.	118
EB589S	5/8'' 9'' 4''	12400 LBS.	123
EB5810S	5/8'' 10'' 6''	12400 LBS.	129
EB5812S	5/8'' 12'' 6''	12400 LBS.	142
EB5814S	5/8'' 14'' 6''	12400 LBS.	158
EB5816S	5/8'' 16'' 6''	12400 LBS.	175
EB5818S	5/8'' 18'' 6''	12400 LBS.	190
EB5820S	5/8'' 20'' 6''	12400 LBS.	205
EB5822S	5/8'' 22'' 6''	12400 LBS.	238
EB5824S	5/8'' 24'' 6''	12400 LBS.	245
EB5826S	5/8'' 26'' 6''	12400 LBS.	258
EB5830S	5/8'' 30'' 6''	18350 LBS.	315
EB5836S	5/8'' 36'' 6''	18350 LBS.	355
EB348S	3/4'' 8'' 4''	18350 LBS.	190
EB3410S	3/4'' 10'' 6''	18350 LBS.	215
EB3412S	3/4'' 12'' 6''	18350 LBS.	225
EB3414S	3/4'' 14'' 6''	18350 LBS.	255
EB3416S	3/4'' 16'' 6''	18350 LBS.	275
EB3418S	3/4'' 18'' 6''	18350 LBS.	298
EB3420S	3/4'' 20'' 6''	18350 LBS.	330
