Hot Sale 1325/1530/2030/2040 Woodworking CNC Router Machine 1325 Wood Router CNC Manufacturer From China

Product Description

Hot Sale 1325/1530/2030/2040 Woodworking Cnc Router Machine 1325 Wood router Cnc Manufacturer From China
Application:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:

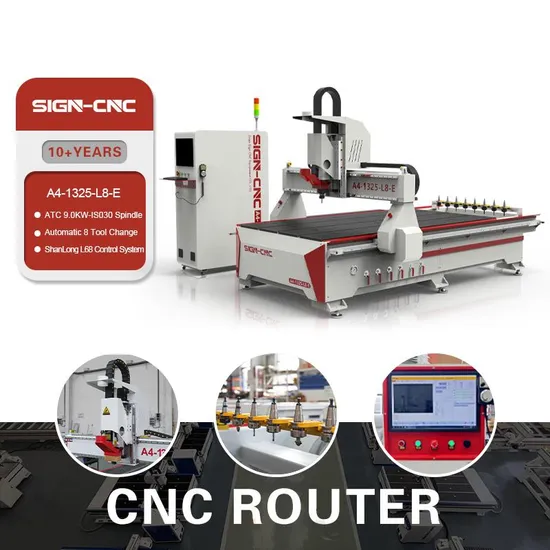

Model	A4-1325-L8-E
Working area	1300*2500mm
Z feeding	300mm
Frame structure	Steel casting-welding
Type of table cover	Vacuum table with T-slot
Vacuum pump	7.5kw air cooling
Z axis transmission	Ball screw and 25mm square guide rails
X Y axis transmission	25mm square guide rails + Helical rack
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	HQD 9.0KW ATC air-cooled ISO30-ER32 spindle
Tool Magazine	8 - 12 pc tools
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
Reducer	Japanese Shimpo planetary reducer
Drive motor type	AC servo motor and driver
operating system	ShanLong L68 control system
Dust Collector	3kw with double bags
Lubrication system	Automatic
Supported software	Artcam with post processor
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	Two year

Samples
Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15-25 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.
