Drill Machine Hydraulic Radial Drilling Machine (Z3035X10)

Product Description

Made in China Radial Drilling machine (Z3035X10)
Feature:
1.Optimum design conforming to international standard.
2.Key precisely machined parts precision machining
3.Flexible reliable; Perfect feature.
4.High precision, High strength.
5.Economical cutting and Long life.
6.Functions: Drilling; counter boring; reaming; boring; spotting; tapping.
7.With comatic automatic ascent and descent
8.With confident construction.
9.With mechanical gear change, convenient to operate.
Mechanical transmission Mechanical clamping Mechanical changing speed Automatic take off and land Automatic feed
Standard accessories of Radial Radial Drilling Press (Z3035x10)
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts
Special accessories of Radial Drilling Press (Z3035x10)
* Quick instead chuck
* Tapping chuck
* Grease gun
Specification:

(Z3035x10) Radial Drilling Press Model	Z3032×9	Z3035×10
Max drilling capacity	Cast Iron 32/Steel 25	Cast Iron 35/Steel 32
Spindle feeds		0.1,0.16,0.25
Spindle taper	MT4	MT4
Spindle speeds series	6	6
Distance spindle axis to column generating line	900-260	250-950
Distance spindle nose to working surface of base	1100-220	340-1000
Spindle travel	120	190
Overall size	1400×710×1880	1530×700×2100
Power of main motor	1.5/2.2	1.5/2.2
Motor power	0.55	2.2/0.75
Weight of machine	800	1100

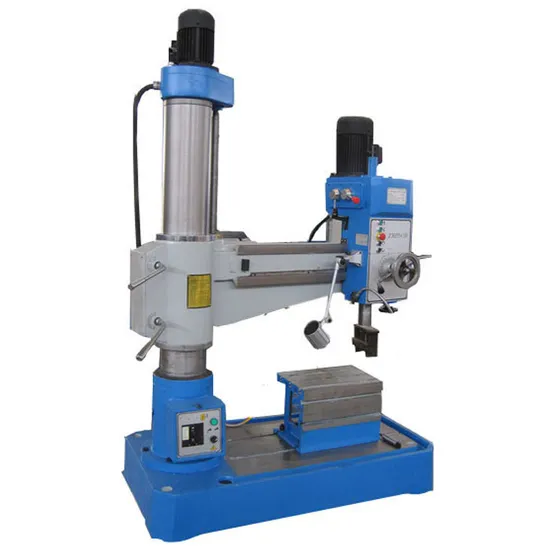

Detailed pictures:
Our service:
We also would like to let you know our warranty about our machines. What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.

---
