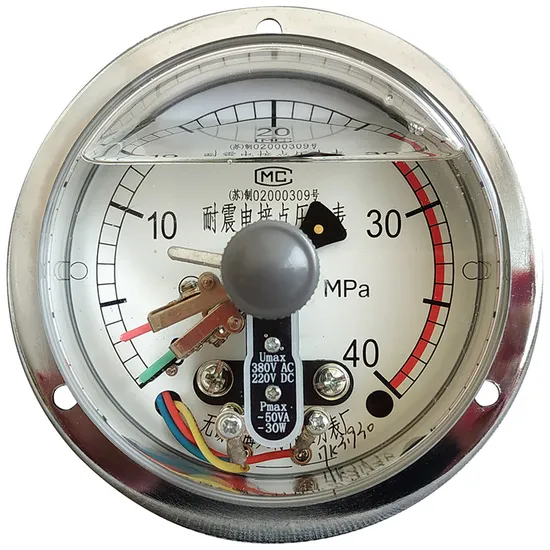

Yx (N) C Serials, 4", Electric Contact Pressure Gauge, 380V, Switch Contact, Alarm Contact, Liquid Filled, Stainless Steel Case, Manometer, Lower Mount, Radial

Product Description

Applications Control and regulation of processes Switching of circuits For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments Chemical industry, petrochemical industry, power plants, mining, on-/offshore, environmental technology, machine building and general plant construction Product Features Up to 2 switch contacts per instrument (upper switch and lower switch) Instruments with inductive contacts for use in hazardous areas Working Voltage: 380V Both liquid filled and non-filled are available Both back mount and lower mount (radial) are available Measurement unit could be bar, psi...etc. as per customer request
Technical Parameters

Model	YXC100/150	YXNC100/150	YXC-100/150BF	YXNC-100/150BF
Nominal Size	Φ100/Φ150
Connecting Thread	M20×1.5,ZG1/2",G1/2",1/2NPT,G3/8",ZG3/8"
Accuracy Class	±1.6%
Scale Range (MPa)	-0.1~0,-0.1~0.06,-0.1~0.15,-0.1~0.3,-0.1~0.5, -0.1~0.9,-0.1~1.5,-0.1~2.4
	0~0.1,0~0.16,0~0.25,0~0.4,0~0.6,0~1,0~1.6, 0~2.5,0~4,0~6,0~10,0~16,0~25,0~40,0~60,0~100
Power	30 VA
Max. Operating Voltage	DC 220V or AC 380V
Safe Operating Voltage	DC 24V
Max. Operating Current	1A
Safe Operating Current	0.1 A

Company Profile
Wuxi Haitian Special Pressure Gauge Factory (Wuxi Haite Instrument Technology Co., Ltd.) was established in 1996. The factory covers an area of 15 acres and has a total factory area of nearly 20,000 square meters. We specializes in the production of pressure instruments, thermometers and accessories. The company has inherited decades of manufacturing technology and craftsmanship, and has developed numerous intelligent and standardized measurement products.
Professional technology, exquisite craftsmanship, rich experience, and continuous innovation make Haite Instruments highly favored by users. After more than 20 years of hard work, Haitian Instruments has become one of the special instrument production bases with "multiple varieties and complete specifications". The products are widely used in petrochemical, gas, metallurgy, machinery, electricity, medicine, food and aerospace industries.
The YN series of liquid-filled pressure gauges produced by our factory are selected by many domestic major hydraulic engineering hoist hydraulic stations; the YBF series of stainless steel liquid-filled pressure gauges and YM series of diaphragm pressure gauges have been selected by many power plants and petrochemical companies, especially our products matched with the gas turbine unit of the Yuanwang series of aerospace scientific surveying and mapping ships, and its outstanding quality has been widely praised.
We sincerely hope to establish more extensive business contacts with domestic&foreign enterprises, institutions, distributors, and provide customers with high-quality products and fast services as always.
Certifications
Workshop at A Glance
FAQ: Q: Is there minimum order quantity requirment?
A: Basically yes, but it's case by case.
Q: What's the normal delivery time?
A: 1~2 weeks if no in store
Q: How about the warranty?
A: 1 Year
Q:Is OEM possible?
A: Yes
Q: Is customized product design available?
A: Yes

---
