Changtong Semi-Conductor Bar Cutting Machine for Solar Applications

Product Description

Equipment use: This cutting-edge model is expertly engineered to excel in boosting cutting efficiency for our valued customers. It features an impressive roller length of 690mm and a versatile table size of 170/145mm*690mm*160mm*2 version, perfectly crafted for precision cutting of products with thickness ranging from 0.3mm to 65mm.

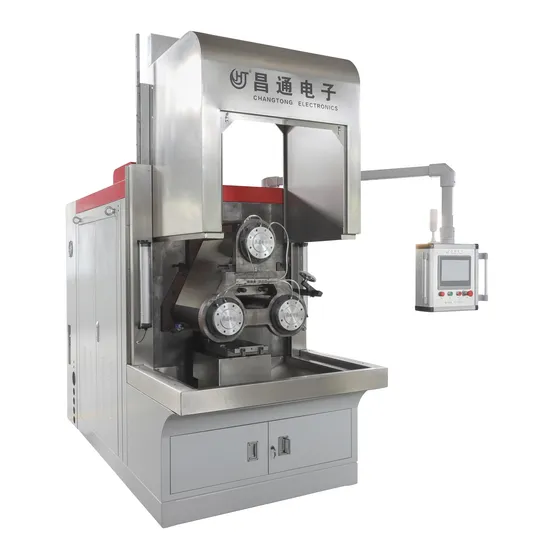

CHTXQ-690F Double Plate Multi-Wire Cutting Machine - Unveiling Unmatched Product Features!
1. Experience precision like never before with our four independent motors driving the four rollers! As each roller becomes a drive shaft, it significantly minimizes steel line wear, enhancing the roller's longevity. The roller bracket's processing center molding ensures impeccable spindle installation with precise coaxial alignment.
2. Elevate your cutting operations with an LED display that offers a clear and intuitive view of cutting data, making monitoring a breeze.
3. Enjoy unparalleled convenience with bottom-up material cutting, simplifying both loading and unloading processes.
4. Tailor your cutting experience with high-speed and standard models. The high-speed machine boasts a faster operation, superior line speed, and enhanced cutting efficiency, allowing for thinner diamond line cuts on identical materials.
5. Leverage transverse movement capabilities to move the table back and forth, enabling tile cutting and offering a versatile single-line cutting function.
6. Maximize your productivity with a generous loading area of 170/145mm*690mm*160mm*2 version, dramatically boosting cutting efficiency.
7. Achieve precision with spindle accuracy ≤0.01mm and enjoy stable operation with our patented structure dust (patent No. ZL201320681902.7), ensuring easy disassembly and maintenance.
8. Simplify your operations with user-friendly features, including an automatic lifting shield and a fully expandable workbench, making material and roll handling effortlessly convenient.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

Introducing our Double-Station Multi-Wire Cutting Machine, a masterpiece of precision engineering with diamond wire processing capabilities. It accommodates one-time processing of two plate materials, a robust roller length of 690mm, and a maximum cutting area of 220mm*690mm*160mm*2 version. With its rotary tool holder function, it offers cutting blade thicknesses from 0.5mm to 65mm, providing both single and multi-line cutting for hard, brittle material batch processing.
Meet the pinnacle of precision with our Multi-Line Cutting Machine, designed with diamond line processing. It features a roller length of 570mm and a maximum cutting area of 220mm*570mm*160mm, equipped with a rotary tool holder for cutting products from 0.3mm to 65mm thick. Ideal for slicing and processing hard, brittle materials in batch straight sheet configurations.
Discover the versatility of our Small Multi-Line Cutting Machine featuring diamond line processing. Available in single and double-station models, it's tailored for small batch straight sheet processing. Enjoy effortless product specification changes and cutting sheet thicknesses from 0.5mm to 30mm, delivering both single and multi-line cutting for hard, brittle materials with ease.
Founded in 1998, Yutian Changtong Electronics Co., Ltd. has evolved from its roots as Yutian Changtong Electronics Factory to become a recognized high-tech powerhouse. In 2007, it was restructured and acknowledged as a high-tech enterprise in Hebei Province. In 2016, it achieved national high-tech enterprise status and expanded with a branch in Yantai, Shandong Province. Our company seamlessly integrates research and development, production, sales, and service as a national high-tech enterprise.
Product Introduction
Main Products: Quartz Crystal Chip (Frequency Sheet); Green Silicon Carbide Powder; Multi-Line Cutting Machine; Electronic Mechanical Equipment.
Quality Certification
Upholding the philosophy that science and technology are the primary forces of productivity, our company has forged collaborations with numerous prestigious research institutions and universities to pioneer innovative products. We've partnered with Northeastern University, Yantai University, Hebei University, Dongguan University of Technology, Beijing Institute of Printing Machinery, and the Chinese Academy of Sciences, among others. To date, our endeavors have garnered numerous patents, with one inclusion in the National Science and Technology Database.
Yutian Changtong Eiectron Co., Ltd. has achieved an impressive array of prestigious accolades, cementing its position as a leader in innovation and technological advancement. The company proudly holds titles such as the "High-tech Enterprise of Hebei Province," along with being recognized as a "Small and Medium-sized Enterprise of Science and Technology in Hebei Province." On a national level, it has been honored as a "National High-tech Enterprise" and a "Specialized and Special New Enterprise." Furthermore, the company's commitment to excellence is underscored by its recognition as a "Municipal Enterprise Technology Center" and a "Municipal Industrial Design Center." Its financial integrity and trustworthiness are also evident with the "National 3A Credit Enterprise" designation, among other accolades.
Value Concept
Guided by a steadfast commitment to "Ethical, Integrity Management," Yutian Changtong Eiectron Co., Ltd. has earned distinction across provinces, cities, and counties. As a testament to its integrity and excellence, the enterprise has been recognized as an A-level tax unit and is celebrated as an honest enterprise. Its unwavering adherence to quality and trust is further highlighted by its status as a quality and credit enterprise. Moreover, the company is commended as an outstanding builder of socialist undertakings with Chinese characteristics, reflecting its dedication to fostering national progress and ethical business practices.

---
