Product Details
Product Description
Product Description
ARO Ingersoll Rand pneumatic diaphragm pump products are widely used in the chemical, pharmaceutical, food, sewage, paper, shipbuilding, paint, mining, dry powder, electroplating and surface treatment, oil and gas, semiconductor and ceramic industries. Chemical industry pneumatic diaphragm pump is mainly used for conveying acid, alkali and organic solvent, the pneumatic diaphragm pump specific self-priming ability, also can be used as a barrel pump, basically can finish material suction within the barrel, shipbuilding, mining and wastewater treatment are mainly used for conveying water, oil, and also can be used as a plate and frame filter feed pump, In the shipbuilding industry mainly using pneumatic diaphragm pump self-priming ability (up to 8 meters) and larger through the larger particles of 9.5 mm, to extract under-bin wastewater, coal mine is mainly using pneumatic diaphragm pump idle running, do not need to separate people watch, also because it is driven by compressed air, do not need electricity, explosion-proof and safer. Electroplating and surface treatment, semiconductor is mainly the use of pneumatic diaphragm pump strong corrosion resistance, pump body material PP, PVDF, diaphragm PTFE, to transport strong acid (HCL. Ingersoll LAN pneumatic diaphragm pump product series to fully meet customer needs, caliber of 1/4,1/2,1,11/2,2,3 inches, pump body material is aluminum alloy, cast iron, stainless steel, polypropylene, polyvinylidene fluoride, diaphragm material is butadiene rubber, fluorine rubber, mountain rubber, polytetrafluoroethylene.
Ingersoll Rand pneumatic diaphragm pump is a new type of conveying machinery, using compressed air as power source, for all kinds of corrosive liquid, liquid with particles, high viscosity, volatile, flammable, highly toxic liquid, can be drained out, has been formed mass production, product quality is well received. The main characteristic of this kind of pump is without irrigation water diversion, both can flow pumping liquid, and can carry some is easy to flow medium, high, suction head is adjustable air pressure is (0 to 50 meters) or work only more than 1 kg/cm2, submersible pump, self-priming pump, all impurity pump, shield pump, slurry pump function, and many features of the conveying machinery.
Main Features:
1, do not need irrigation water, suction up to 7m, 50m head, outlet pressure ≥ 6kGF /cm2;
2, flow spacious, good performance, allowing through the particle diameter of 10mm. Pumping mud, impurities, little wear on the pump;
3, head, flow can be achieved through the valve opening stepless regulation (air pressure regulation between 1-7kGF /cm2);
4, the pump has no rotating parts, no shaft seal, diaphragm pumping medium and pump moving parts, working medium is completely separated, the transmission medium will not leak out. So pumping toxic, easy to play or corrosive media, will not cause environmental pollution and harm to personal safety;
5, do not need to use electricity;
6, can be immersed in the medium work;
7, convenient, reliable work, stop by simply opening and closing the gas valve, even if long time no medium due to unexpected run or stop suddenly, the pump will not be damaged because of this, not overload, the pump will automatically stop, has to protect themselves, when load returns to normal, and automatically start running;
8, simple structure, less wearing parts, the pump structure is simple, convenient installation and maintenance, pump transmission medium will not come into contact with the valve, connecting rod and other moving parts, unlike other types of pump due to the rotor, piston, gear, blade and other parts of the wear and tear and make the performance gradually decline;
9, can transport sticky liquid (viscosity below 10,000 centipoors);
10, the pump does not need oil lubrication, even idling, there is no impact on the pump, this is a major feature of the pump.
Main applications:
1, pump peanut butter, pickles, mashed potatoes, small sausage, jam apple pulp, chocolate, etc.
2, pump paint, gum, pigment.
3, adhesive and glue, all kinds of pump suction.
4, all kinds of tile, porcelain, brick and pottery glaze slurry.
5. After drilling well, pump sediment and grouting.
6, pump all kinds of emulsions and fillers.
7, pump all kinds of sewage.
8, pump for oil tanker, barge to absorb the sewage in the warehouse.
9, hops and baking powder dilute pulp, syrup, sugar dense.
10, pump suction mine, tunnel, tunnel, mineral processing, slag water. Pump cement grout and mortar.
11. All kinds of rubber pulp.
13, all kinds of highly toxic, flammable, volatile liquid.
14, all kinds of strong acid, strong alkali, strong corrosive liquid.
15, all kinds of high temperature liquid can withstand 150℃.
16, as a variety of solid-liquid separation equipment before the pressure delivery device.
Ingersoll Rand type aperture shell material diaphragm material
666120-344-C 1 inch PTFE aluminum alloy
66612B-244-C 1 inch stainless steel PTFE
666121-2EB-C 1-inch stainless steel mountain road rubber
66612C-3EB-C 1-inch cast iron mountain road rubber
66612C-244-C 1 inch cast iron PTFE

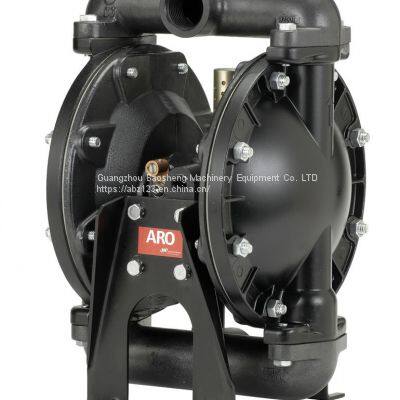

1 "metal pump
Shell material: aluminum alloy, stainless steel, cast iron
Maximum flow rate: 133LPM
Maximum pressure: 8.3Bar
Fluid outlet: 1" NPTF or 1" BSP
Air inlet: 1/4-18NPT
Maximum dry suction height: 6.1m
Maximum particle diameter available: 3.2mm
Weight: 8.6-16.3kg (depending on the model) cast iron air motor plus 3.63kg
>>
