42W Series Multiple AC/DC Power Adaptors

Product Description

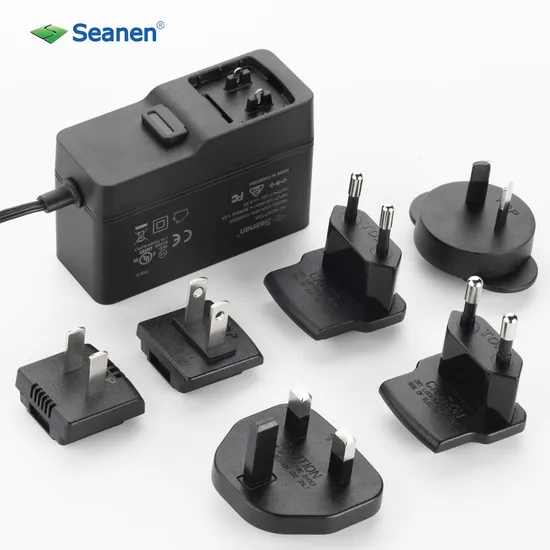

42W Series Wall mount Power Adaptor

42W SERIES POWER ADAPTOR SPECIFICATION
Input	Rated input voltage	100-240Vac
	Operating range	90-264Vac
	Rated input frequency	50/60HZ
	Rated input current	1A max
	Power consumption (no-loading)	0.075W max
Output	Nominal DC output voltage	9.0-11.9V DC	12-15V DC	18-24.0V DC
	Rating load current (Max)	4.2A	3.5A	1.75A
	Rating output power (Max)	37.8W	42W	42W
	Load regulation	+/-5%
	Ripple and noise	150 mVp-p
AC pin	Versions	US EU UK AU CN
	Types	Fixed pin / detachable pin
Protections	Over voltage protection	Yes
	Short-circuit protection	Yes
	Over current protection	Yes
Envionmental requirements	Operating Temperature	0°C +50°C
	Storage Temperature	-20°C +80°C
	Operating humidity	10%-90% RH (Non Condensing)
	Storage humidity	10%-90% RH (Non Condensing)
Size	82*33*45mm (L*W*H)
Approvals	UL, GS, CE, UKCA, CCC, RCM, CB, FCC
Compliance	RoHS, PAHS, REACH, WEEE

Features Multi uses, 9-24V output voltages
Small and compact design
Stable output
Energy efficiency level VI
Completed protect function
Fire retardant plastic housing
Fixed pin or detachable pin optional
Various standard connector optional
Applications Audio & Video devices
Digital devices
Household appliances
Office electronics
Computers & laptops
Network devices
Security systems
Industrial equipments
Certificates and Approvals UL, GS, CE, UKCA, CCC, RCM, CB, FCC
Protection Over voltage protection
Short-circuit protection
Over current protection
EMI Emission Radiated and Conducted Emission
FCC part 15
EN55032
GB9254, GB17625.1
EMS Immunity Electrostatic Discharge Immunity: EN 55035, EN 61000-4-2
Radiated Field Immunity: EN 55035, EN 61000-4-3
Fast Transient Immunity: EN 55035, EN61000-4-4
Surge Immunity: EN 55035, EN61000-4-5
42W series power adaptor certified status
DC cable & connector Cable : VW-1 80ºC 300V L=1500mm 2468 18AWG 2C
Connector:
Remark: Other cables and plugs per customer request.
Packing

Type	Pcs per Ctn	Gross Weight (kg)	Net Weight (kg)	Measrement (mm)	CBM	Container	Ctn container	Pcs per Container
UL	80	12.9	11.9	330*297*245	0.024	20FT	1680	134400
CCC	80	12.9	11.9	330*297*245	0.024	20FT	1680	134400
PSE	80	12.9	11.9	330*297*245	0.024	20FT	1680	134400
GS	80	13.1	12.1	440*297*245	0.032	20FT	1260	100800
RCM	80	13.1	12.1	440*297*245	0.032	20FT	1260	100800
UKCA	80	13.8	12.8	440*297*245	0.032	20FT	1260	100800

Similar Products
Application

Company Brief Introduction Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.
Our standard products cover the full range items, from 0.5W to 200W output power. Safety approved including UL/cUL, TUV-GS, CE, UKCA, RCM, PSE, K-mark, CCC, and FCC etc. Compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
We can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.

FAQ
1. Are your products compliant with efficiency level VI ?
A: Yes, our products are compliant with USA DoE VI, and EU CoC Tier2 as well.
2. Are your products compliant with RoHS ?
A: Yes, all of our products are compliant with RoHS, also REACH and PAHs.
3. Can I get a couple of samples?
A: Of course you are welcomed to get samples for free.
4.What's the MOQ you accept?
A: MOQ is 2,000pcs.
5. What are the advantages of your products?
A: Our products have reliable quality with completed certifications and on time delivery. Besides, our integral manufacture (e.g.moulding, plastic injection, metals and cables making etc) can ensure our competitive price.

---
