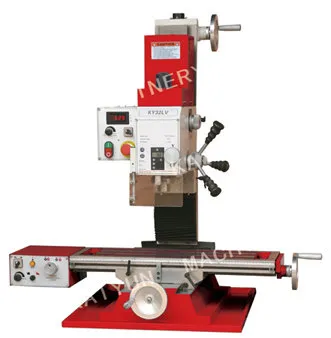

1 Year Warranty Micro Low Price Drilling Milling Machine (KY32V/KY32LV)

US$1,020.00-1,350.00 3 Sets (MOQ)

Basic Info.

Model NO.
KY32V/KY32LV
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Color
Red
Drilling Capacity
32mm
Face Milling Capacity
70mm
End Milling Capacity
20mm
Spindle Taper
Mt3 or ISO30
Net Weight
220kg
Motor
1.1 Kw
T-Slot
12mm
Sleeve Travel
70mm
Transport Package
Wooden Case
Specification
KY32V/KY32LV
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month

Product Description

Features
1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.
Specification
Model No. KY32V KY32LV
Drilling capacity 32mm 32mm
Face milling capacity 70mm 70mm
End milling capacity 20mm 20mm
Spindle taper MT3 or ISO30 MT3 or ISO30
Sleeve travel 70mm 70mm
Low speed stage 50-1000 rpm 50-1000 rpm
High speed stage 150-3000 rpm 150-3000 rpm
Head rotation ±90° ±90°
Table size 700x210mm 840x210mm
X-axis travel 425mm 625mm
Y-axis travel 220mm 220mm
Z-axis travel 370mm 370mm
T-slot 12mm 12mm
Motor 1.1 KW 1.1 KW
Packing size 710x890x1150mm 710x890x1150mm
Net weight 220kg 220kg
Standard Accessories
Speed display 1 set
Depth ruler 1 set
Working lamp 1 set
Drill chuck 3-16mm 1 set
Arbor MT2/B16, M10 1 set
Drawbar MT2/M10 1 set
Operation tools 1 set
Optional Accessories
Stand & chip tray
Keyless drill chuck 3-16mm
ER32/6pcs collet chuck (6-20mm)
3-way angle vise/75mm
Milling vise
End mill 7pcs (4-16mm)
58pcs of clamping kits/M10*11.7mm
X-axis Power feed
Digital readout

packing
Warehouse to film
