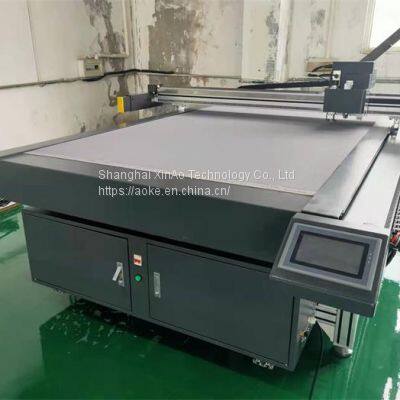

DCZ70 series high speed flatbed cutter
Email: tradeb@aokey.com emily.jia6529@gmail.com
Mobile/WhatsApp/Wechat: 0086-139-1779-6529
Technical Specification:
Model
| DCZ702516
| DCZ701713
| DCZ701310
|
Effective cutting area
| 2500*1600mm
| 1700*1300mm
| 1300*1000mm
|
Configuration
| Oscillating knife, pen, creasing tool, drag knife ,
|
Smallest cutting dia.
| 6mm
|
Max. speed
| 1350mm/s
|
Driver
| Servo Motor
|
Motor
| Leadshine
|
Max. Cutting thickness
| 30mm
|
Data form
| HPGL,DXF,PDF
|
Option
| Video registration system, feeding and blanking system
|
Dimension (L*W*H)
| 3400*2640*1400mm
| 2600*2160*1400mm
| 2200*1860*1400mm
|
Note: Other size can be customized.
Name: DCZ70 series high speed flatbed cutter
Hot selling model: DCZ702516, DCZ701713, DCZ701310,
Expansion function: AOKE CCD vision system
Equipped tool: oscillating knife, drag knife, pen, creasing tool,
Main cutting material: corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion board, and other materials…
Application: Ads,Display, Packaging, Graphic industry and etc…
Induction:
1. DCZ70 series high speed digital flatbed cutter is AOKE newly developed carton box sample making system with performance greatly improved compared with the original design.
2. It not only offers better processing speed, higher processing precision, and more convenient operation, but also gorgeous appearance Materials like corrugated board, chipboard, foam board, plastic board, thin wood board, leather, cloth, etc, can be cut with our cutter.
3. DCZ70 series sample making machine can be used for cutting, creasing and drawing and is widely suitable for sample making or small scale production in packaging sector and manufacturing industries like corrugated box, color box, color printing, die cutting and the like. Because of its excellent performance, it enjoys sound reputation among our clients in packaging, advertising, printing, die cutting, electron, gasket, and sign industries.
4. Moreover, the DCZ70 series has gained great support from Shanghai Technology Small and Medium Enterprises Technical Innovation Fund.
5. The machine is equipped with plotting pen, oscillating cutting tool, creasing tool, drag knife tool to meet customers' various requirements.
6. The convenience of assembly and disassembly among different tools has greatly improved the working efficiency of operators.
7. Additionally, the heavy duty drag knife tool, V cutter tool, foam cutter tool could be used for special materials of different industries.
8. This product also called box sample maker, sample maker, Ads cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application.
Main features:
1. With two interchangeable tools and whole sets head design, DCZ70 series high speed digital flatbed cutter features convenience to change the cutting tools
Its four spindles high speed controller employs modularized installation and comes with convenient maintenance
2. The cutting thickness and cutting speed are both easily set. Besides, the cutting depth is adjustable according to clients' requirements
3. Easy to set parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.
Cutting materials:Corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet etc.
Application:This machine can be used to make samples, cut and small production in the industries such as Ads, Packaging, Display, Graphic and so on.
Cutting Samples:
>>
