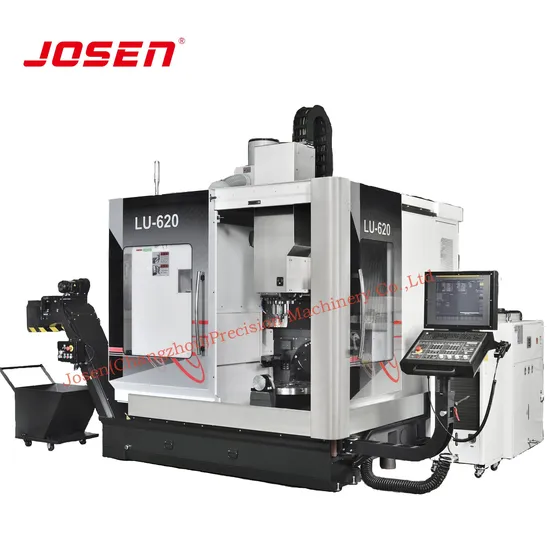

Taiwan Litz 5-Axis Machining Center Lu-620 Vmc

Product Description

LU620 5-Axes Machining Centers
Product Description
Basic Info

Description / Machine Model	Unit	LU-620
X-axis travel	mm	620
Y-axis travel	mm	520
Z-axis travel	mm	460
B tilt axis rotation range	degree	-50°~+110°
C-axis rotation range	degree	360°
Distance from spindle nose to table surface	mm	150~610
Spindle speed	rpm	12000
Tool specification		HSK-63A
Tool magazine type		Tool arm type tool changer
Number of tools	pcs	32
Maximum tool diameter (without neighbor)	Mm	ψ75(ψ127)
Max. tool length	Mm	250
Max. tool weight	Kg	8
Spindle motor	kw	18/21
X/Y/Z axis motor	kw	6.5/4.5/6.5
B/C axis motor	kw	8.6/4.5
Table area	mm	ψ650
Center hole size	mm	ψ55H7×12
T-slot arrangement	mm	T18 radial 8 groove
Maximum workpiece volume	mm	ψ580x(50+R438)L
Maximum table load	KG	300
X/Y/Z axis rapid traverse	m/min	36/36/36
B/C axis rapid traverse	rpm	25
Cutting feed rate	mm/min	1-20000
Controller	Heidenhain	TNC 640
Machine weight	kg	8800
Tank capacity	L	240
Power Requirement	KVA	25
Air pressure source	kg/cm2	6
Appearance size (L/W/H)	mm	3863×2730×3310

Left elevation

Right elevation

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile

Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
