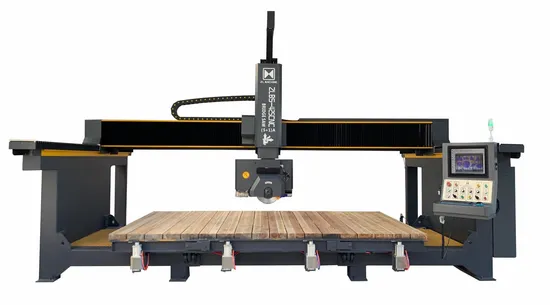

Zl 5 Axis CNC Bridge Saw Machine for Marble, Quartz Kitchen Countertop

Product Description

Product Parameters

Model	4+1 Axis CNC bridge saw	5+1 Axis CNC bridge saw	Unit
Worktable size	L3500*W2000	L3500*W2000	mm
Maximum cutting	L3500*W2000*H90	L3500*W2000*H90	mm
Maximum chamfering	L3500*W2000*H50	L3500*W2000*H50	mm
Blade diameter	350-425mm	350-425mm	mm
Main motor power	15	22(permanet magnet motor with frequency)	kw
Router power	5.5	5.5	kw
Control center	industry computer with CNC	industry computer with CNC
Driving motor	Servo motor	Servo motor
Router max speed	24000	24000	RPM
Total power	25	32	kw
Suction cup lifting weight	200	200	kg
Head rotate	0°-360°	0°-360°
Head tilt	0°and 45°	0°-90°
Cylinders	5	5	group
Dimensions	L5750*W3260*H3500	L5750*W3260*H3500	mm
Water consumption	2	2	m³/h
Total weight	5	5	t
Main part delivered size	5750x2200x2500	5750x2200x2500	mm
Machine delivered method	Main part delivered as whole(HQ container)	Main part delivered as whole(HQ container)

5+1 Axis CNC bridge saw
4+1 Axis CNC bridge saw
Product Description
For processing marble, granite, porcelain, and quartz stone countertops, we provide CNC bridge saws of the ZLBS-425CNC/(4+1) A type and the ZLBS-425CNC/(5+1) A type. They are precise, effective, and user-friendly machines. Take a picture first, then load the drawing and start by aiming the plate inside the picture. Saw blades, milling cutters, suction cups, and pressure plate cylinders will automatically generate combined processing steps according to the program.Therefore, the machine is used to help install countertops without any dust. We also provide OEM/ODM production machine service; if you require anything, feel free to contact us.
Option: Chinese local system,
or ESA hardware with Pegasus software from Italy.

1: The machine is a conjoined structure; it takes up less space and is easy to install and move.
2: This machine has an excellent chamfering range of 3500x2000mm.
3: With an industrial computer and a 17" color touch-screen.
4: Use a camera to locate the position of the plate and display it in the cutting procedure.
5: The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
6: An automatic tool setting gauge is equipped that automatically checks the blade.
7: The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
8: The worktable can be flipped up to 85°.
9: A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.
10: Option:The machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plate and rubber
