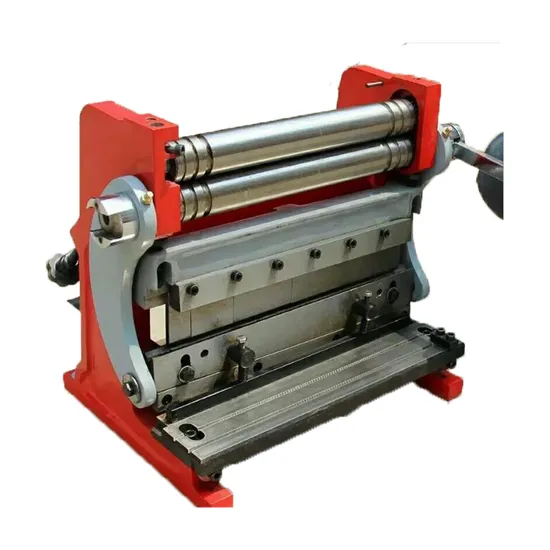

3 in 1 Multi-Functional Manual Rolling Machine Manual Plate Bending Machine

Product Description

feature of product: 1. The blade can be replaced 2. Standard backsplash 3. With two positioning handles 4. Can cut soft steel and other metal sheets 5. Box-shaped or flat-shaped workpieces can be bent 6. The mixing roller is equipped with forming grooves Main application: manual cutting and folding three-in-one machine It is suitable for cutting, bending and rolling of steel plate, copper and aluminum plate. main feature: 1 German structure design, manual, light and simple. 2 Shearing machine, bending machine, bending machine, three machines are integrated. 3 The bending angle is 90~170°. 4 Segmented bending upper die provides more operating space for bending work. 5 Optional bed feet.

Model	305	610	760	1060	1320
Width	305mm	610mm	760mm	1067mm	1320mm
Thickness	steel1.5mm copper aluminum3mm	steel1.5mm copper aluminum3mm	steel1.5mm copper aluminum3mm	steel1.5mm copper aluminum3mm	steel1.5mm copper aluminum3mm
Bending width	305mm	610mm	760mm	1067mm	1320mm
Bending thickness	steel1.2mm copper aluminum2.5mm	steel1.2mm copper aluminum2.5mm	steel1.2mm copper aluminum2.5mm	steel1.2mm copper aluminum2.5mm	steel1.2mm copper aluminum2.5mm
Bending angle	90~170°	90~170°	90~170°	90~170°	90~170°
Rolling width	305mm	610mm	760mm	1067mm	1320mm
Rolling thickness	steel1.2mm copper aluminum2.5mm	steel1.2mm copper aluminum2.5mm	steel1.2mm copper aluminum2.5mm	steel1.2mm copper aluminum2.5mm	steel1.2mm copper aluminum2.5mm
Minimum	38mm	38mm	38mm	42mm	56mm
Size	42×32×40cm	83×37×50cm	98×37×55cm	140×46×65cm	170×49×71cm
Weight	83kg	195kg	235kg	340kg	424kg

---
