Yogurt Fermentation Mixing Milk Transport Tank SS304 Stainless Steel Milk Can Machinery Small Capacity

Product Description

Related Products

Product Parameter

Product Name	100L Alcohol Still Boiler
Capacity(L)	100L
Weight(KGS)	30Kgs
Heating Method	electric, gas
Power(KW)	2.5 ~5.5KW
Voltage(V)	110V/220V/240V/380V
Material	SS304/SS316
Application	Used as still pot of home still, food storage
Certificate	CE, ISO

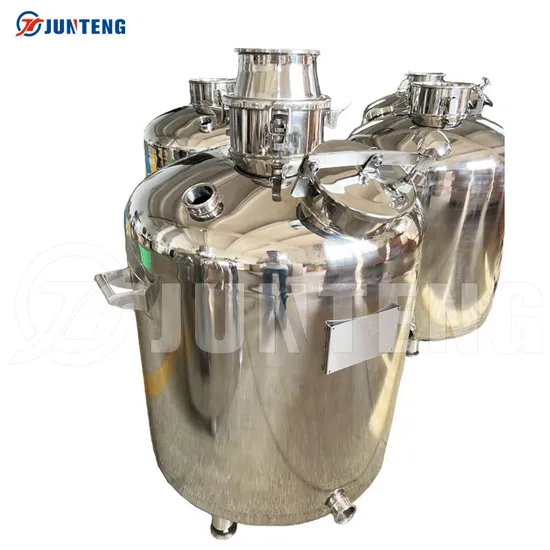

This 100L is a lovely Still Boiler just the job for the scaled-up runs as a final test before the larger still or just small runs for self-consumption at home. It can be supplied with very nice red copper plates column or SS304 plates column. The optional agitator can mix the wash during the heating process, which makes the heating more evenly. The tops of the boiler /milk can have 4 clips that hold down the 4″ ferrule top. The boiler top has 1 2″ TC ferrule as raw materials loading port and a half-inch BSP thermometer port.
We are also producing following various sizes of boilers.

Model	Working Volume (L)	Working Volume (Gallon)	Diameter (mm)	Height (mm)	Motor Power (KW)
JT-D30	30	8	300	660	0.37
JT-D50	50	13	350	660	0.37
JT-D100	100	26	500	730	0.37
JT-D200	200	53	700	850	0.37
JT-D300	300	79	800	980	0.55
JT-D500	500	132	900	1100	0.55
JT-D1000	1000	264	1000	1350	0.75
JT-D2000	2000	528	1600	1800	1.5

Product Display



Key Components

This lovely and nice built Milkcan boiler is deal for you to build your own home still.






01.TRI CLAMP LID
The stainless steel clips can firmly hold on the tri clamp lid for the mount of plates column. You can read for the temperature inside the Milkcan through the dial thermometer.






02.DRAINAGE PORT
This is the outlet of drain or other materials that you want to get out from the Milkcan boiler.








03.ELECTRIC HEATING ELEMENT
This is the electric heating element for the Milkcan boiler. You can use it to heat the wash or other kind of materials that you load.




04. AGITATOR
The agitator can mix the wash during the heating process, which makes the heating more evenly.
Production Process
Company Profile



FAQ
Q: Are you a manufacturer or trading company? A: Junteng is leading manufacturer based in Wenzhou, China. Q: Which kind of product can you make? A: We are producing and supplying distillery equipment, dairy equipment, crafts beer equipment, tanks and sanitary components.
Q: Can you make the products per our requirement? A: Yes, Junteng has strong R&D team that can provide you customized solution and products.
Q: Will you charge us for drafting drawing and designing? A: No, we provide free engineering and designing services for our customer if that is necessary.
Q: What is the warranty of your products? A: The standard warranty is 1 year for our products.
Q: Can you provide service and instruction for installation after delivery? A: Yes, we can provide you free instruction and support online. We can also send engineer to your factory for onsite instruction. But you need to pay the travel expense.
Q: Can we become your local distributor? A: Yes, we are working with many distributors all over the world. We'll be glad to discuss with you for the details if you have interest.
Q: What is your required MOQ? A: The MOQ is 1pc for the stock products. The MOQ of custom made product should be per discussion.

---
