High Quality Sawdust Pellets Machine Biomass Wood Pellet Production Line

Product Description

Product Description

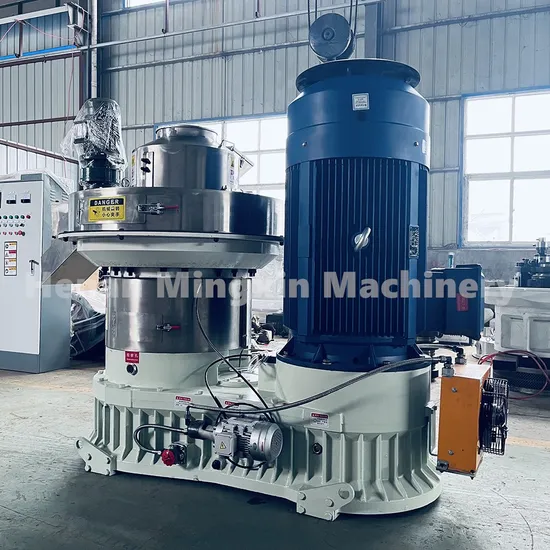

High quality Sawdust Pellets Machine biomass wood pellet production line
Biomass pellet machine is a kind of biomass energy pretreatment equipment. It mainly uses agricultural and forestry processing waste such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidifies it into high-density pellet fuel through pretreatment and processing. Biomass pellet machine is divided into flat die biomass pellet machine and ring die biomass pellet machine.

Model	Power(kw)	Capacity(kg/h)	Final size	Oversize(mm)
450	55+1.5+0.37+0.55KW	0.7-1.2t/h	2-12mm	2200*900*1600
550	75+1.5+0.37+0.55KW	0.8-1.3t/h	2-12mm	2600*1300*2300
560	90+1.5+0.37+0.55KW	1-1.5t/h	2-12mm	2600*1300*2300
680	132+1.5+0.37+0.55KW	2-2.5t/h	2-12mm	3200*1400*2400
850	220+2.2+0.37+0.55KW	2-3t/h	2-12mm	/
850A	220+2.2+0.37+0.55KW	2.5-3.5t/h	2-12mm	/
880	315+3+0.37+0.55KW	3-4t/h	2-12mm	/

Application
1. Use Wood Chipper, Wood Crusher to make wood logs, chips (or other materials) smaller. 2. Use Dryer (rotary drum dryer / Air-flow dryer) or add water to the sawdust(or other materials) till its moisture content between 8-15%, which is the best moisture content for pelletizing. 3. Put the sawdust into the pellet machine gradually. Large scale pellet production need a screw feeder to make sure stable feeding of raw material. 4. After pelletized, the pellets are of high temperature that is not suitable for direct packing. So they should be cooled by pellet cooler. Then, pellets go through a vibrating sieve, where good pellets will be left, while broken ones or powder will be collected for reproduction. 5. After all the above procedures, pellets can be packed with a pellet packing machine.
The main purpose
1. Civil heating and domestic energy consumption: high fuel utilization rate and easy storage;
2. Biomass industrial boilers: as the main fuel for industrial boilers, they can replace coal and reduce air emissions and pollution;
3. Power generation: it can be used as fuel for thermal power generation. Detailed Photos
Scope and application
This product is suitable for pressing hard-to-bond and difficult-to-form materials.
1. Various melon and fruit shells such as rice husk, sunflower seed shell, peanut shell, etc.
2. Branches, trunks, bark and other wood waste
3. Various crop straws
4. Various chemical raw materials such as rubber cement and ash Applied in feed mills, wood processing plants, fuel plants, fertilizer plants, chemical plants, etc., it is an ideal compression and densification equipment with small investment, quick results, and no risk
Features:
1. Centrifugal high efficiency, high pressure, suitable for difficult-to-press materials.
2 . The wear rate is low, and the life of the pressure wheel and the grinding disc is long.
3. The pressure roller adopts an automatic lubrication system, which can run continuously without stopping.
4. Long service life of the grinding disc: the mold is developed by special processing technology of alloy steel, has a hard and wear-resistant surface and a tough core, and has high-efficiency low-temperature impact toughness.
5. High performance ratio and cost performance: On the basis of similar equipment, the technological content and functions of the machine have been improved. In terms of price, the affordability of the majority of users, especially the processing cost of small enterprises, has been fully considered.
Packaging & Shipping
Inner packing: we can use plastic packing if the client needs
Outer packing: usually wooden case or the container
We can also pack the machine according to the client's need.
Delivery method: by sea
Delivery time: We respect the contract, and will deliver the goods on time as agreed for customized order. For normal products, we have stocks for immediate delivery.
Company Profile
Henan Mingxin Machinery Co. Ltd is a company that integrates science,industryand trade. The company mainly sells mechanical equipment and accessories, pipeline equipment,refractorymaterials, abrasive materials, water purification equipment, wire and cable. Our company follows thehuman-oriented, honest, pioneering entrepreneurial spirit with scientific and technological innovation.We have always regarded the technology as the motive force, the market as the orientation to makethe products first-class.
Our company insists on the professional development based on the principle of innovation and honesty. We win the market with our advanced skills, high-quality products and considerate services.The products in our company have been exported to the South Africa, Pakistan, Vietnam and other counties with the advanced technology, reliable quality and reasonable price. We have also got the good reputations from customers at home and abroad.
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. If the product is really suitable and can benefit you, the price is negotiable.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.

---
