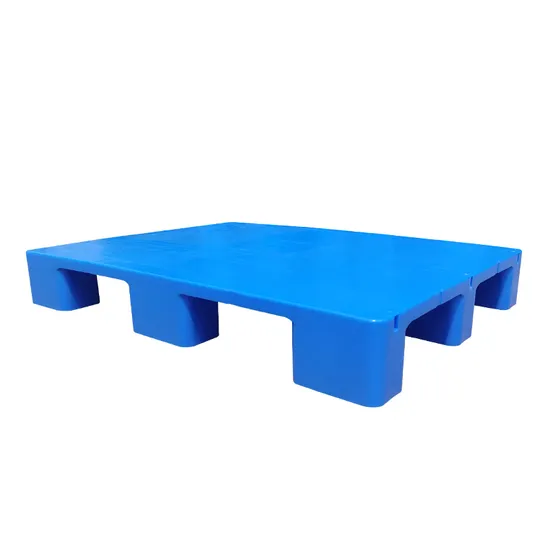

Durable HDPE Plastic Pallet for Printing Industry Needs

Product Description

PRODUCT PARAMETERS
The dedicated printing pallet product series are specially customized and developed plastic pallets tailored to the characteristics of the printing industry. Xingfeng printing pallets are made of high-quality, eco-friendly modified materials, featuring recyclability, aesthetic appeal, resistance to insect infestation and mold, no burrs, and exceptional durability. Currently, this series boasts over 30 models, primarily designed to fit with renowned printing equipment brands such as BOBST, HEIDELBERG, KBA, KOMORI, MANROLAND, and MITSUBISHI/RYOBI. They are suitable for various aspects of the printing industry, including paper transportation, placement, circulation, and continuous feeding during the printing process.
Application of Printing Pallets in Printing Processes 1. Paper Cutting Process The raw paper is picked up and placed on a cutting machine, cut to the set dimensions, and then placed on a plastic pallet. For printing equipment with uninterrupted paper replacement functionality, ribbed plastic pallets are generally used to hold the paper. For other printing equipment, flat pallets can be used.
2. Warehousing
The cut printing materials are loaded onto plastic pallets and directly warehoused with the pallets, ready for subsequent printing use.
3. Printing (Uninterrupted Paper Feed)
The cut paper is fed into the paper feed platform of the printing machine to start printing. When one pallet of paper is nearly exhausted, an insertion pole (steel tube provided with the machine) is inserted into the bottom of the paper through the groove of the pallet and placed on the pole holder. At this point, the pole lifts the paper, and the plastic pallet is lowered and removed using a lifting platform. Then, the second pallet of paper is forked onto the lifting platform, which rises to the pole position. The pole is then withdrawn, allowing the remaining paper from the first pallet to rest on the second pallet. This process is repeated to achieve uninterrupted paper feed.
4. Post-Printing (Paper Reception)
The printed pallets are placed at the paper output of the printing machine to receive and hold the printed products. They are then warehoused with the pallets or transferred to the next process. (Note: For products requiring second printing, ribbed pallets are generally used for paper reception to repeat the previous printing process. Otherwise, flat pallets are more commonly used.)

---
