High Quality Gbm Tyre Type Mobile Hopper with Dust Collector

Product Description

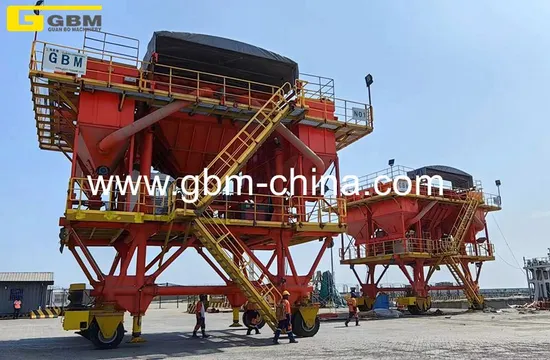

High quality GBM tyre type mobile hopper with dust collector used in port
Dust-proof Hopper DetailThis equipment is mainly used for the unloading and loading of bulk cargoes. The bulk cargo is grabbed by a portal grab crane, and the grabbing materials are run to the loading and unloading by the relevant operation mechanism of the gate grab crane. Above the system, the grab is opened by the PLC control system of the portal crane and the bulk cargo is unloaded into the unloading funnel of the loading and unloading system; an electrohydraulic push rod control device is located on the discharge opening of the unloading funnel. It is used to control the flow of material, so that it is safe and effective when loading the vehicle, which greatly improves work efficiency.The hopper of this equipment is divided into two layers, because the lower hopper of the upper hopper is relatively large, the hopper is not easy to raise dust, the suction port of the dust collector is arranged in the middle of the two layers, and the upper and lower material ports are sealed and dusted with a pulse bag filter.The hopper designed by our company is mainly used for loading and unloading coal slag, cement powder and iron powder, and can be designed according to the requirements of customers. The dedusting device, electro-hydraulic door device and vibration feeding device can be installed on the funnel, which greatly improves the Handling efficiency. This equipment includes bagging machine, main support steel frame, gravity feed funnel, power distribution box, discharge chute, bag holder, pneumatic system and some optional devices such as dust collector, empty Presses, etc. Among them, the DCS bagging machine consists of feeders, weights, etc. This device is used for weighing and bagging various small particle materials such as grain, dried cassava, fertilizer, PVC powder, small pellet feed, etc. Small particles of ore, bauxite and so on.
Technical parameter
3.1 Main parameter

Model	Mobile type dust proof hopper system
Working type	continuous
Total standard height	11100mm
Clearance height	see drawing
Total span	12106x7000 mm(only For reference)
Material rated weight inside of the hopper	40000 kg
Total weight	Abt 80650 kg
Equipment dimension	see drawing

3.2 Hopper frame

Total height	11100 mm
Span	see drawing
Material	Q345B

3.3 Hopper

Capacity	About 35 m³
Effective capacity	About 35 m³
Max inlet dimension	5400 x 5400 mm
Outlet dimension	800x800 mm
Material	T10_Q345B

3.4 Grating device

Space between gratings	300mm X 300mm/T16mm x 160mm
Grating spec.	10_Q345

3.5 Ladder, platform, corridor

Ladder form	The equipment adopts cat ladder, straight ladder, and safety protection bar for ladder higher than 2m
Platform material	Grid plate
Corridor material	Grid plate

3.6 Electric putter

Power	5.5 KW	Horizontral valve open size
Pulley quality	2 groups
Opening speed	t<60S

3.7 Electric winch

Power	1.5KW	To controlle the height telescopic slip barrel
Pulley quantity	1 group
Opening speed	t<40S

3.8 Dust collector technical parameter

Device model	1 set of hopper	A model
Specification	Inlet flow rate	64000m³/h
	Total filtered area	660 squre meter
Centrifugal fan	Power:75 KW	1 set

3.9 Electric control

Power supply	3 phase , 4 lines
Power voltage	440 V
Power frequency	60 Hz
Control method	Dust proof device controlled by PLC Others by electrical control

3.10 Traveling motors

Power supply	7.5KW
Quantity	2

3.11Others

Paint	Color to be decided further, thickness 180 μm
Bearing	Domestic made parts
Cabin	With Shock absorber, air conditioner, chair, noise insulation, speaker, control desk
Control system(Opreating room)	Signal display platform	1 set
	Manual operation	1 set
Air compressor	1 set x 15kw (piston type air compressor)
Lighting	0.25kw x 12 pcs

Design drawing :
Photo for reference
FAQ For more information, how to contact with GBM ?
*What material do you need unloading ?
* Will you want fixed hopper or movable hopper ?
* If you want movable hopper, will you want rubber tyre mobile hopper or railway mobile hopper ?
* What kind of hopper you need ? Non dust proof or dust proof hopper ?
* What is the power in your country ? Will you need cable ? What's the length of cable will you need please ?
* Do you have any requirement on delivery period or certificate please ?

---
