Vending Machine Infrared Drop Sensor for Fall Detection with Factory Price

Product Description

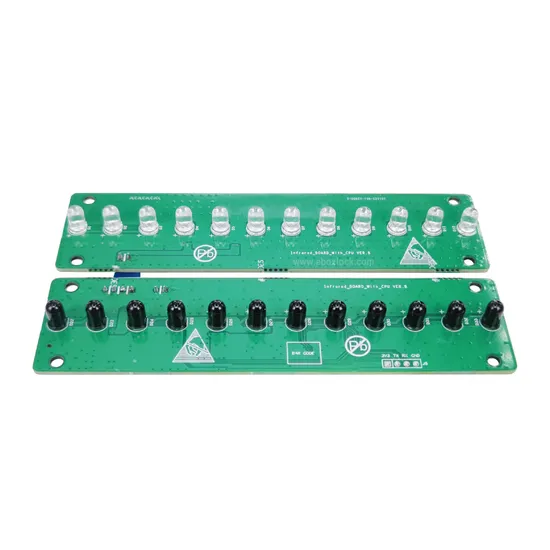

Vending Machine IR sensor VHOP40-1214 is a set of compact modules to detect whether product is vended after a selection is made. The drop sensor, attached to the underside of the delivery chute, sends a signal to the microcontroller when a product hits the delivery chute. It includes IR emitter and receiver for covering up to 1 meter. The implementations of modulated IR signal immune the sensor to the interferences caused by the normal light of a light bulb or the sun light; even transparent item can be detected.
Features: Working voltage ranges 10V-32V High intensity of IR sensor for efficient detection Multiple sensitivity levels for different applications. Immune from sunlight Able to detect transparent object.. Compact size for hidden installation. Compatible with all types of vending machines Able to customize for size and sensitivity Specifications:

Operation Voltage	12/24VDC±10%
Operation Current	160/80mA
Standby consumption TX	1.6-2.5W
Standby consumption RX	<1W
Digital output LOW	200-400mV
Digital output HIGH	2-3.6V(Customized)
EM WL	940nm
PS WL	700-1100NM
Offset angle	Less than 15 degrees
Offset Range	Less than 2cm within 1m
Detection range	Less than 1.5m
Working Temperature	-40C ~ +70C
Gross weight:	0.3kg

We offer various Drop sensors for object fall detection of vending machine, please contact for more detail.
Order Particular:

Model No.	IR Emitters/ Receivers Qty	Size(mm)	Interval (mm)
VHOP40-2424	24	240X33	10
VHOP40-1617	16	171.4x14	11
VHOP40-1532	15	307.6x32.7	22
VHOP40-1214	12	130x32.7	11
VHOP40-932	9	94.4 x 32.7	11
VHOP40-640	6	60 x 40	10

Vending machine control system
About Us
Dajiang is a designer and manufacturer specializing electrified locking solutions for lockers, cabinets and kiosks. No matter size-restricted enclosures or heavy-doored metal cabinets; we can meet your particular security requirement with customized design for your applications.
Our ranges cover electronic cabinet locks, electronic drawer locks, smart parcel locker control system, vending machine control system, and IOT control hardware and software. With professional security control solution, Dajiang locks and controllers is ideal for areas of parcel locker, smart lockers, vending lockers, cash drawers; post mailboxes; medicine and archive cabinets; Key Cabinets and mailbox.
Quality control melts into the whole process and our products are completed under continuous supervise and multistage of tests. We are very proud of our product and service. We are confident you will enjoy the experience with us and appreciate all opportunity to answer any questions or provide any further information.

---
