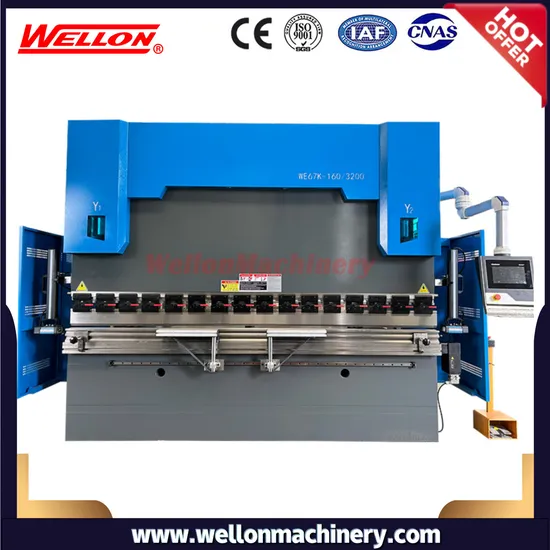

CNC Metal Sheet Hydraulic Press Brake Bending Machine WE67K-100T/2500

Product Description

Product Description
Product Parameters

Performence Features: 1. Main Features:
Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical
compensation device,to ensure the precision of bending.
Hydraulic synchronous control and CNC programmable controller guarantee precise repeatability and easy use.
Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.
X ,Y-axis realize accurate positioning function through CNC CybTouch 6 controller programming and servo motor.
Latest servo response hydraulic control technology, the machine tool is more stable and reliable.
Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation
PBT series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis
compensation function combining with customized dies, any type irregular workpieces can be done.
2. Main Configuration
Touch 6 controller
Controller controls and adjusts Y-axis and X-axis
Servo drive and control positioning of X-axis and Y-axis
Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm
Front supporter bracket
Germany EMB oil tube connector
Germany Siemens main motor
Hydraulic & electrical overload protection
Upper and lower dies(86°, R0.6mm, material: 42CrMo)
3. Safety Standard:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front Finger protection ( safety light curtain )
South Korea KACON pedal switch ( safety grade 4 )
Back metal safeguard, CE standard
Safety relay monitor pedal switch, safety protection
Safety standard ( 2006/42/EC)
4. CybTouch6 controller
Large, vivid and high-contrast fully touch screen.
Simple pages, clear display, large keys.
Very simple single bends with EasyBend page.
Complete programming allows efficient mass-production of parts with multiple bends.
Online help and warning pop-ups make it a very user-friendly software.
Available in many languages.
Comfortable wireless software updating and data backup using PC or Notebook
Technical parameter:

Number	Name		Value	Unit
1	Nominal pressure		1000	KN
2	Length of workbench		2500	mm
3	Distance between housings		1900	mm
4	Throat depth		300	mm
5	Ram stroke		160	mm
6	Open high		420	mm
7	Back gauge		600	mm
8	Ram speed	Work speed	120	mm/s
		Pressing	9	mm/s
		Return	100	mm/s
9	Main motor	Model	Y160L-4B5
		Power	7.5	KW
		Speed	1440	Rrm
10	Axial plunger pump	Model	NB5-G20F
		Flow rate	20	L/min
		Pressure	25	Mpa
11	Overall dimension		2900×1800×2500	mm
12	Weight		7000	KG

Main Configuration (All the components are from World Famous Brand):

No.	Components	World Famous Brand
1	Control System	CT12 4+1 aixs
2	Electrical Components	Schneider Electrical from France
3	Main Motor	Siemens from Germany
4	Hydraulic System	Bosch-Rexroth from Germany
5	Hydraulic Pump	Sunny from USA
6	Ball screw/ Liner guide	HIWIN from Taiwan
7	Foot switch	KACON from South Korea
8	Travel switch	Schneider Electrical from France
9	Tubing connector	EMB from Germany
10	Mechanical Crowning system	From Weili
11	SEAL/ GUIDE RING	PARKER from USA
12	Servo motor	HUICHUANG from China
13	Grating ruler	HEIDENHAIN from Germany

Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
