Paper Plant Stainless Steel Pulp Screen Basket for Pulp Machine

Product Description

Product Description
The screen basket (pressure screen basket) is used to screen the pulp before the paper machine. The pulping pressure is stable and pulsed. Its structure is simple, easy to use, its screening effect is good, and the output is high, so as to give play to the good performance of the screen drum and achieve a good screening effect. The screen basket adopts a mechanical method to realize the connection with the supporting structure. Compared with ordinary screening tool screen baskets, its slitting rate is high, the production capacity is greatly improved, and the power consumption is lower.
The pressure screen basket is composed of a sieve perforated plate, an overflow bucket and a non-perforated plate. There are many small holes distributed on the screen plate, and the vapor passes through the small holes from bottom to top, transfers heat and mass through the liquid layer on the tray, and then rises. The liquid flows through the tray according to a certain route, and the liquid is held by the vapor with a stable flow rate, and flows through the overflow hopper to the non-porous plate (liquid receiving tray) of the next tray. The thickness of the liquid layer is determined by the height of the inlet baffle and outlet baffle on the tray.

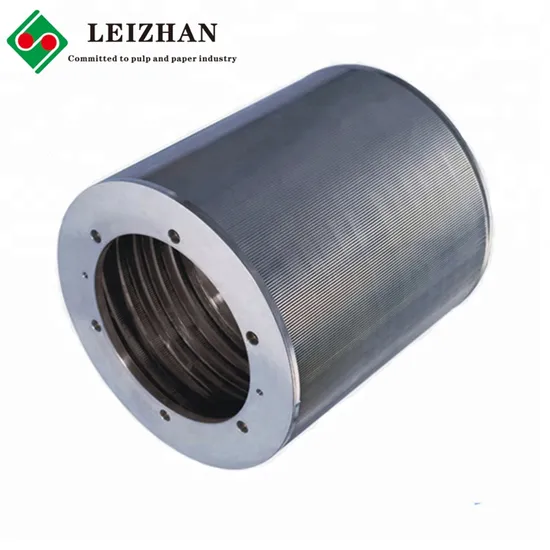

Screen Basket
The main features of the screen basket (pressure screen basket):
1. High screening efficiency: Because the slurry enters the sieve along the tangent line at a higher pressure, the fiber and coarse impurities have been separated before the slurry enters the sieve drum under the action of centrifugal force. Qualified fibers quickly pass through the screen drum by the pressure difference between the inlet and outlet of the pulp.
2. The screen drum has a long service life: after the pulp enters the pressure screen, the heavy impurities of the pulp have been separated by centrifugal action, so the impact and wear of the impurities on the rotor and the screen basket are reduced. Extend the service life of the screen drum.
3. No clogging when sieving the pulp: the pulp is uniformly sieved from
top to bottom without thickening, the impurities are far away from the
screen basket, and the screen basket is not easy to be blocked. Drawing of screen basket
4. It can replace low-pulse sieve: this machine has low pulse intensity of good pulp, so it will not be disturbed directly on the Internet.
5. The pulp quality is good. The sieve drum is made of stainless steel and the finer sieve slits greatly increase the removal rate of harmful impurities in the good pulp.
6. Low maintenance cost: The main shaft adopts advanced mechanical sealing system, which is not easy to be damaged.
7.Screen slot: Screen slot can also be used, the direction of the screen slot is parallel to the main shaft, the slit width is 0.2-1 mm, the spacing is about 3 mm, and the opening rate is mostly 7-8%. The capacity is 30-50% lower than that of the perforated screen, and the processing is also difficult, but the quality of the good slurry is good.
8. The thickness of the wear-resistant layer on the overall surface of the sieve plate is 0.2mm, and the surface hardness can reach HV900-1100. Detailed Photos

Technical Parameters

Model NO.	Screen Area(mm)	Screen hole size (mm)	Screen slot size (mm)	Screen Hole (T/D)	Screen Slot (T/D)	Motor Power (Kw)
LZSD0.3	0.3	Φ1.6-Φ3.5	0.1-0.55	50-80	30-50	22-55
LZSD0.6	0.6	Φ1.6-Φ3.5	0.1-0.55	90-160	60-100	30-75
LZSD0.9	0.9	Φ1.6-Φ3.5	0.1-0.55	135-250	90-150	37-90
LZSD1.2	1.2	Φ1.6-Φ3.5	0.1-0.55	180-320	120-190	45-110
LZSD1.5	1.5	Φ1.6-Φ3.5	0.1-0.55	200-380	140-230	55-132
LZSD2	2	Φ1.6-Φ3.5	0.1-0.55	260-500	220-300	75-160
LZSD3	3	Φ1.6-Φ3.5	0.1-0.55	400-700	300-450	90-220
LZSD4	4	Φ1.6-Φ3.5	0.1-0.55	500-1000	350-730	132-280
