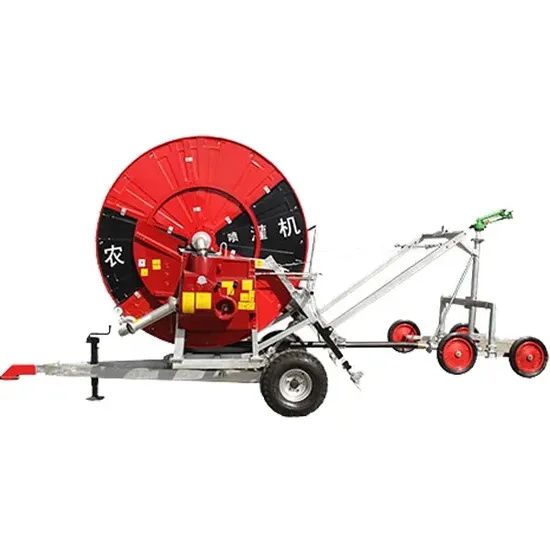

Durable Agricultural Hose Reel Irrigator with Boom Sprinkler System

Product Description

Product Description

Product application:

Irrigation farm sprinkler hose machine irrigation farm sprinkler hose was pulled by tractor engine reel irrigation center pivot irrigation/ Chinese agricultural engines/farm irrigation system mobile . Irrigation JP machines is an auto driven by a water turbine propelled machinery. It enters the water pressure of the water through the turbine, the kinetic energy of the use of water-driven water tubine rotation.Multifunction device by rotating water turbine gearbox driven winch rotation,drag the PE pipe nozzles to achieve uniform vehicel recovery .while pressure is transmitted to the PE pipe water into the nozzle to achieve nornal spray nozzle,It mainly consists of the chassis ,rack,winch,PE pipes,automatic control devices,water turbine drives,gearboxes,car nozzle guide sections devices,security devices and other components.Simple structure,high degree of automation,adaptable,easy to operate and multi-speed,is one of China's national conditions suitable for water-saving irrigation equipment ideal,single nozzle irriagtion machine mainly used in the indicator over the atomization low crop.used center pivot irrigation Product picture

Product pictures:

Product Parameters

Main features:

Specifacation 1.8JP75-300 irrigation machine with spry gun 2.Pipe diameter:75mm 3.Pipe lenght:300m Advantage: 1.This kind of machine is with high irrigation efficiency, low the labor tension, save water, suitable for middle and small farm to adopt. 2.It has simple structure, high automatical level, adaptive range is wide.
Detailed Photos

Details & parts picuters:

Name: Winch recycle power

Adopts choking stream type water turbine driving, instead of side impact type water turbine structure, guarantee normal working under the lower water pressure(0.4Mpa); its working theory is high pressure water flow vertical impacting the impeller blade, water flow get the utmost of use, producing strong driving force, comparing with the side impacting type water turbine, in the same water pressure, the driving force can enhance 30%, spraying radius can enlarge 30% distance.

Name: Reduction gear box

Adopts 6 gears structure design(all is 2 gears in this business line), recycling speed adjusting range within 4-65m/h, meet various crops watering quantity; under the same power condition, 6 gears reduction gear box has smaller resistance than the 2 gears gear box, equivalently adding at least 20% recycling power.

Name: Sprinkler wagon lifting equipment

Sprinkler wagon recycles to the main body, handing the lifting equipment can rise the sprinkler wagon, heighten sprinkler wagon walking wheels ground clearance, it is convenient for the sprinkler's movement and transportation; avoiding the walking wheels mop the ground during the machine is moving on some ditches and slops.

Name: Domestic vertical swing arm spraying guns

Jet distance during spraying, strong wind resistance,guarantee the users can water the fields under the different weather condition.

Name: Transmission mode

Reduction gear box transmits power to winch is gear transmission, comparing with the chain transmission mode, gear transmission is more stable, without the problems of chain falling off, breaking or other situation.

Name: Left and right supported feet

Adopts spiral vice-landing leg and lengthen pipe combine design, easy operation,fast, and convenient; powerful supporting, guarantee the main body's stability when tract the sprinkler wagon.

Name: Host walking tire

Big size with 10-12 tire, powerful carrying capacity and walking ability ,durable in use, reliable quality.

Name: PE water pipe

Korea imported raw material, carrying water pressure is 1.6Mpa, reliable quality, weather resistance, maturing, using life is more than 15 years.

Name: Host water entry

Adopts left and right side design, more convenient to link with the water delivery soft belt, avoiding the water delivery soft belt appears bend so that affects the passing ability of the high pressure water.
Packaging & Shipping

Packing & Delivery:

Size	40'HQ ( 2 units)
Weight	4,690.00KGS
Packaging Details	PACKAGES/4,690.00KGS/52.000CBM

Company Profile

Company Info:

Hebei Nongon Machinery Trading Co., Ltd is a professional agricultural machinery products exporting company, we are one of the Chinese biggest corn seeder producer branch company. Hebei Nonghaha Agricultural Machinery Limited Company was founded in 1990 and became Hebei Nonghaha Group in 2002. Located in Shenze County, Shijiazhuang City, Hebei Province, Our company is one of the biggest manufacturers of agricultural machines in China, which covers an area over 200, 100 square meters with 1500 workers. The total assets of our group are about RMB300 million. Now, our company has four subsidiary companies, which are seeding company, harvesting company, heating boiler company and agricultural machine parts company. Our company is the crackajack contribution unit of China Circulating Association. Our products are divided into four series with 60 types, which are seeders, corn harvesters, rotating & harrowing machines and heating boilers. Seeders are our leading machine whose cost-volume-profit relationship has ranked the first in consecutive 10 years, which also sell very well in more than 20 countries in the world with their top-quality, low price, and perfect after service. The most important that is Nonghaha series seeder is the only one kind of product of exempted from inspection in China. Our company has become Chinese private science & technology enterprise. Our group bears many key scientific items of our country, cooperating with China Agricultural University, Hebei Agricultural University and Hebei Agricultural Machinery Research Institution and other famous science research centers, absorbing many experts and scholars to devote themselves to Agricultural machine development. Our group adheres to the strategic policy of "rooting in countryside, servicing for agriculture, bringing benefit for farmers, carrying forward quickness, innovational, practical, honest spirits", and abides by management concept of "human-oriented, scientific and technological innovation", and carries out the magnificent engineering of reigning supreme as the finest in the country. Our company is developing quickly in order to accelerate the speed of agriculture mechanisation in the worldwide.
FAQ

FAQ:

Q1: Are you a factory or trading company?
We are manufacturer with self-supported import and export right.
Q2: How can I trust on your company?
We are a fully registered manufacture and exporting company by China Export Registration Authorities. Moreover, ourproducts have been exporting to a number of countries including USA, Thailand, Russia, Poland, Netherlands.Australia, Chile, Pakistan, Indonesia, Tanzania, Nigeria, South Africa, Sudan, Congo etc. The good faith, punctual, strict'quality control and reasonable price, throughout is the pledge we to each customer.
Q3: Where is your factory located? How can Ivisit there?
Our factory is located in Shijiazhuang City, Hebei Province, China. About 1.5 hour away from Shijiazhuang Zhengding International Airport. All our clients are warmly welcomed to visit us!
Q4: How can I place an order from your website?
lt is very easy.Once you find the implement you need on our website and place an inquiry or get to the inquiry section and leave us a message there with name, country and phone number, we will get in touch with you at the earliest. You can also e-mail us directly or join us on live chat for instantaneous answers.
Q5: How can I make the payment?
Payment is made via Telegraphic Transfer (T/T) through the bank against the proforma invoice 30% as prepayment and pay the balance when the goods are ready for shipping.
Q6: What's the Payment terms?
FOB the price of the implement without sea shipment costs.
ClF,including the unit cost + marine insurance + Shipment charges to your destination port.
CFR, including the unit cost + Shipment charges to your destination port.
Q7: At which port do vou usually ship the good?
We usually ship goods via Tianiin port, Qinadao port, Shanghai port and Ningbo port of China
Q8.How about the Warranty ?
12 months warranty from the time of the goods arrive at destination.

---
