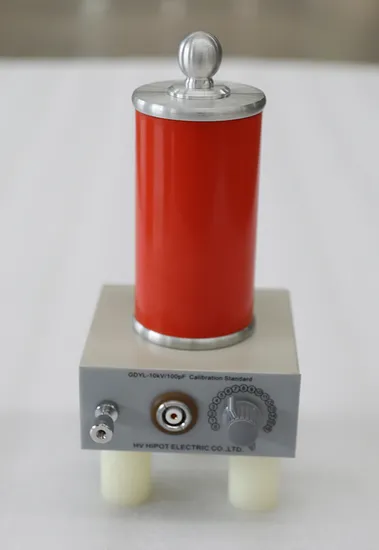

GDYL-12kV/100PF High Voltage Standard Capacitor

Product Description

GDYL-12kV/100pF High Voltage Standard Capacitor
Product Description It is standard capacitor for tan delta. When calibrating the test result, it can be tested as test object. User can compare the measured test result with former result.
High-voltage standard capacitors can be tested in general at ordinary times, or sent to the pilot station for verification, and the latest values can be recorded at any time for later use. In the event of doubts about the results of the experiment, the standard can be used as a test, tested, and the results compared with the previous values to determine the data deviation caused by the bridge or other reasons.
Due to the high stability and accuracy (absolute value) of this standard. So whether it is in the laboratory or in the field, it is a very convenient standard device.

Specifications Environmental temperature: 20ºC±5ºC Relative humidity: RH<85% Rated voltage: 12kV Rated frequency: 50Hz,or 60Hz Capacitance: 100pF Tan Delta value(nominal value): 0, 1×10-4, 2×10-4, 3×10-4, 5×10-4, 8×10-4, 1×10-3, 2×10-3, 3×10-3, 5×10-3, 8×10-3, 1×10-2, 2×10-2, 3×10-2, 5×10-2, 8×10-2, 1×10-1 Stable value of capacitance: ±0.15% Stability of dissipation factor: ±0.5%±1×10-4

---
