| Physical Port | |
| RJ45 port and speed | 16x10/100/1000ase-T/16xPoE |
| Combo port and speed | 4x10/100/1000T/1000Base-X SFP Combo |
| Parameters | |
| Ethernet standards | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/100BASE-FX IEEE802.3ab 1000BASE-T IEEE802.3z 1000BASE-SX/1000BASE-LX IEEE802.3x Full duplex and flow control IEEE802.1Q Tag VLANs |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10k Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Switch Fabric | 56Gbps/non-blocking |
| Exchange property | Delay time: < 7μs |
| Backplane bandwidth: 56Gbps | |
| Packet forwarding rate: 41.66Mpps | |
| PoE | |
| PoE Standard | 16 x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W, total 250W |
| PoE Pin Assignment | 1/2(+), 3/6(-) |
| LED Indicator | |
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber | Link/Act: connect-always; data exchange-twinkle |
| Power Information | |
| Power type | Internal Power |
| Power input | AC 100~240V, 50/60Hz, auto-sensing |
| Total power consumption | 250 watts (max.) |
| Physical Property | |
| Enclosure | Metal |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 440mm x 280mm x 44mm (L x W x H), 19-inch, 1U height |
| Installation mode | Rack-mountable |
| Weight | 4.2kg |
| Working Environment | |
| Operating Temperature | -5ºC~50ºC |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -10ºC~70ºC |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 2-year warranty, lifetime technical support |
| Certification Standard | |
| EMI | FCC Part15 Subpart B Class A, EN 55022 Class A |
| EMS | EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11 |
| Collision | IEC60068-2-27 |
| Drop | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety grade | EN60950-1 |
| Software Features | |
| Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring. | |
| Centralized Management: Cloud access and Omada app for ultra convenience and easy management. | |
| Static Routing: Helps route internal traffic for more efficient use of network resources. | |
| Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more. | |
| Optimize Voice and Video Applications: L2 QoS and IGMP snooping. | |
| Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities | |
| Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring. | |
| Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. | |
| Enterprise Level Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. | |
| Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. | |
| ISP Features** QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. | |
| IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware. | |
| Model | Description |

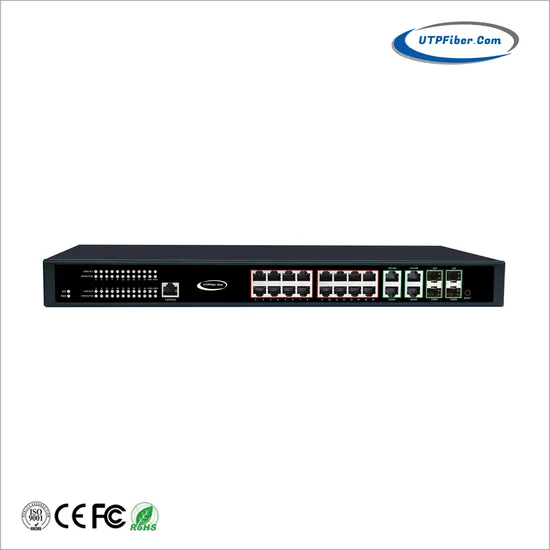

| UF-MSW16GP4C | L2+ Managed 16-Port 10/100/1000T 802.3at PoE + 4-Port Gigabit TP/SFP Combo Ethernet Switch |
| SFP Options | SFP option. Please select your SFP on our SFP Options Page |
| SFP module is to be purchased separately. | |
| Mounting Options | Rack Mount |
