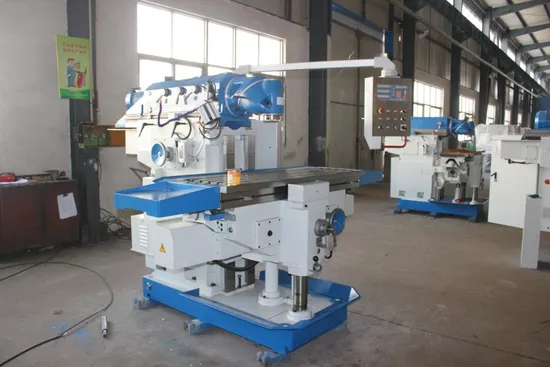

Made in China X5750A High Precision Servo Motor Universal RAM Milling Machine

Product Description

Product Description
Main Feature
a,Table 3 axes with ball screws, high precision
b,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
C,Mechanical change speeds in head stock, powerful milling
D,Table with an extra supporting column, big load, high accuracy
E,Table with an extra supporting column, big load, high accuracy
F, It can mill any angle surface through front half-sphere by swivelling milling head.
Mechanical change speeds head stock
universal milling head
universal milling head
universal milling head
Double supporting column

Standard electrical components
Schneider electrical components

Specifications	Unit	X5750A
Table size	mm	500*2000
T-slots(NO./width/pitch)	mm	5*18*80
Table travel (X/Y/Z)	mm	1400*700*500
Swivel angle of milling head	-	360°
Spindle taper	-	ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/5-500
Table rapid speed	mm/min	2200/2200/1100
Distance between spindle nose and table surface	mm	50-550
Distance from spindle center line to column	mm	45-745
Main motor power	Kw	7.5
Feed motor	Kw	AC servo motor X/Y:18NM; Z: 27NM
Max load	Kg	1800
Overall size	mm	2625*2860*2080
weight	kg	5000
