Airbag for Large Heavy Objects

US$1,000.00-9,000.00 1 set (MOQ)

Basic Info.

Model NO.

Airbag for large heavy objects

Standard

CB/T3837, ISO

Application

Salvaging, Ship Launching And Ashoring, Cargo Carrying, Boat, Yacht, Salvaging, Ship Launching and Ashoring, Cargo Carrying

Customized

Customized, Customized

Condition

New, New

Surface Treatment

Polished

Material

Aluminum

After-Sales Service

Online Service

Type

Marine Outfitting

Size

2.5*1.8

Certificate

CCS, Ec, ABS

Transport Package

Transport Packaging

Specification

Standard

Trademark

ZJNM

Origin

Jiangsu

HS Code

401695000

Production Capacity

500sets/Year

Product Description

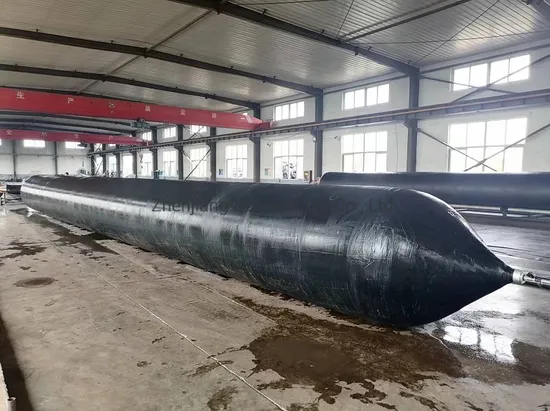

Airbag for large heavy objects
Outer rubber layerThe outer rubber layer that covers the outside of marine airbag to protect under layer from abrasion and other external forces. This compound has sufficient tensile and tearing strength to withstand any condition and hard usage.
Synthetic-tire-cord layer for reinforcementThe reinforcement cord layers, which are made of synthetic-tire-cord commonly used in tires, are arranged at ideal angles to hold the internal pressure and distribute stress evenly. So they can provide strong efficient reinforcement.
End fittings End fittings include Pipe fitting at the inflation end and Pull ring at the sealing end.

ship launching air bag ---SPECIFICATION
DIAMETER	WORKING PRESSURE	WORKING HIGHT	GUARANTEED BEARING CAPACITY PER UNIT LENGTH
DIAMETER	WORKING PRESSURE	WORKING HIGHT	KN/m	T/M	Lb/ft
D=1.2m (D=3.94FT)	0.17Mpa (24.66psi)	0.7m(2.296ft)	133.61	13.62	9154
		0.6m(1.968ft)	160.30	16.34	10983
		0.5m(1.640ft)	187.08	19.07	12818
		0.4m(1.312ft)	213.76	21.79	14646
		0.3m(0.984ft)	240.44	24.51	16474
		0.2m(0.656ft)	267.22	27.24	18309
D=1.5m (D=4.92ft)	0.13Mpa (18.85psi)	0.9m(2.952ft)	122.63	12.50	8402
		0.8m(2.624ft)	143.03	14.58	9800
		0.7m(2.296ft)	163.43	16.66	11198
		0.6m(1.968ft)	183.94	18.75	12602
		0.5m(1.640ft)	204.34	20.83	14000
		0.4m(1.312ft)	224.75	22.91	15398
		0.3m(0.984ft)	245.15	24.99	16797
D=1.8m (D=5.90ft)	0.11Mpa (15.95psi)	1.1m(3.608ft)	120.96	12.33	8287
		1.0m(3.280ft)	138.22	14.09	9470
		0.9m(2.952ft)	155.59	15.86	10660
		0.8m(2.624ft)	172.85	17.62	11843
		0.7m(2.296ft)	190.22	19.39	13033
		0.6m(1.968ft)	207.48	21.15	14216
		0.5m(1.640ft)	224.75	22.91	15398
		0.4m(1.312ft)	242.01	24.67	16581
		0.3m(0.984ft)	259.38	26.44	17771
		0.2m(o.656ft)	276.64	28.20	18954
		NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL FENDER SYSTEM DESIGN . YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST .

ship launching air bag ---SPECIFICATION
DIAMETER	WORKING PRESSURE	WORKING HIGHT	GUARANTEED BEARING CAPACITY PER UNIT LENGTH
DIAMETER	WORKING PRESSURE	WORKING HIGHT	KN/m	T/M	Lb/ft
D=1.2m (D=3.94FT)	0.17Mpa (24.66psi)	0.7m(2.296ft)	133.61	13.62	9154
		0.6m(1.968ft)	160.30	16.34	10983
		0.5m(1.640ft)	187.08	19.07	12818
		0.4m(1.312ft)	213.76	21.79	14646
		0.3m(0.984ft)	240.44	24.51	16474
		0.2m(0.656ft)	267.22	27.24	18309
D=1.5m (D=4.92ft)	0.13Mpa (18.85psi)	0.9m(2.952ft)	122.63	12.50	8402
		0.8m(2.624ft)	143.03	14.58	9800
		0.7m(2.296ft)	163.43	16.66	11198
		0.6m(1.968ft)	183.94	18.75	12602
		0.5m(1.640ft)	204.34	20.83	14000
		0.4m(1.312ft)	224.75	22.91	15398
		0.3m(0.984ft)	245.15	24.99	16797
D=1.8m (D=5.90ft)	0.11Mpa (15.95psi)	1.1m(3.608ft)	120.96	12.33	8287
		1.0m(3.280ft)	138.22	14.09	9470
		0.9m(2.952ft)	155.59	15.86	10660
		0.8m(2.624ft)	172.85	17.62	11843
		0.7m(2.296ft)	190.22	19.39	13033
		0.6m(1.968ft)	207.48	21.15	14216
		0.5m(1.640ft)	224.75	22.91	15398
		0.4m(1.312ft)	242.01	24.67	16581
		0.3m(0.984ft)	259.38	26.44	17771
		0.2m(o.656ft)	276.64	28.20	18954
		NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL FENDER SYSTEM DESIGN . YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST .
