Power Transmission Line Tower Connection Plate Punching Machine FINCM Steel Plate CNC Hydraulic Plate Punching High-Speed Drilling Machine

Product Description

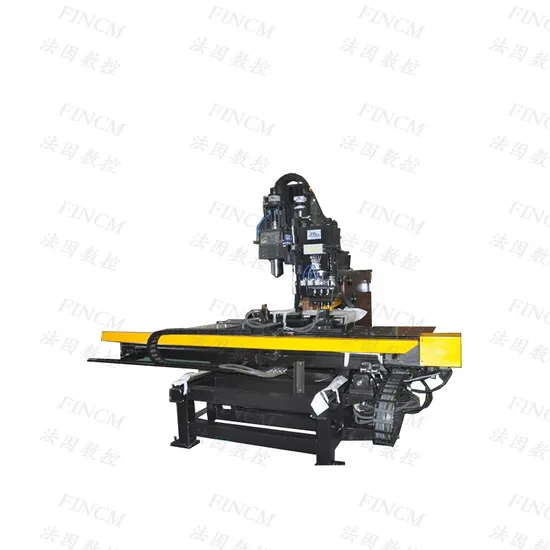

PPHD153 FINCM Steel Plate CNC Hydraulic Plate Punching High-Speed Drilling Machine 1800mm*800mm*25mm
Product Description
CNC hydraulic flat punching and drilling compound machine is mainly used for punching small and medium sized plates in steel structure, electric power and automobile industries.

Main Technical Specifications:

Parameter name	Unit	Value
Thickness Workpiece Size	mm	5mm~25 mm
Max. size of workpiece	mm	1800mm×800mm
Punch force	KN	1500KN
Max size of drilling diameter	mm	¢40mm
Max.size of punching diameter	mm	¢30mm
Punching diameter &thickness	mm	σb≤420MPa:¢30×25mm σb≤610MPa:¢26×20mm
Minimum hole margin	mm	25mm
Spindle Drilling taper		BT50
Drilling diameter	mm	φ13-φ40(Carbide drill)
Max. speed of spindle:	r/min	3000r/min
Clamp cylinder Number	piece	2
Quantity of CNC axes	piece	3
Stroke of X ,Y,Z axis-speed	m/min	0--18m/min
Motor power of oil pump	KW	22KW
Motor power of spindle	KW	15KW
AC servo motor power of X axis	KW	3KW
AC servo motor power of Y axis	KW	3KW
AC servo motor power of Z axis	KW	2KW
Work-pressure of high-lift pump	MPa	24MPa
Work-pressure of low-lift pump	MPa	6MPa
Method of hydraulic cooling		Water cooling
Method of Tools cooling		trace Oil fog cooling system
Total power	KW	26KW
Overall dimensions (L×W×H)	mm	About 3620×3720×2400mm
Net weight of the machine	Kg	About 11500Kg

Working environment:
Working temperature: 0ºC ~ 40ºC
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz Relateed Products
