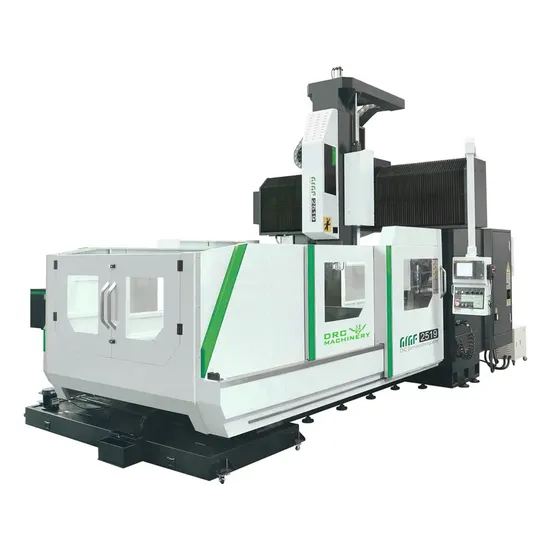

Heavy Cutting Double Column CNC Gantry Machining Center

Product Description

Heavy cutting double column cnc gantry machining center
Widely used in the aviation, auto, precision molding industries. GMF series can provide a high-performance mechanical system and a software interface which can be operated easily. This provides multiple choices of multiple choices that will allow you to fully realize the high precision dream.
Gantry CNC Milling Machine Center
Structure
The structure of machine tool is analyzed with ANSYS at all stages from foundation design to guarantee of high-speed and high-precision continuous machining. A simulation test for deformation produced when the center of machine tool bears load is conducted to guarantee excellent bending rigidity of machine tool

Specifications		15B Series
Machine Type	Unit	GMF2015B	GMF2515 B	GMF3015 B
Worktable
Worktable (length×width)	mm	2200*1300	2700*1300	3200*1300
Maximun Load of table	kg	6000	8000	8000
T-slot	mm	7-22×175
Triaxial itinerary
Gantry width	mm	1550
Travel for X/Y/Z axis	m	2000/1500/900	2500/1500/900	3000/1500/900
Distance from spindle nose to table surface	mm	150-1050
Feed system
CNC system	FANUC Oi MF
Rapid shift of axis of X/Y/Z	m/min	12/12/10	12/12/10		10/12/10
Maximun cutting feed speed	m/min	7
Automatic tool transform system
Standard tool quantity	Piece	BT50/24
The larges diameter cutter knife/length	mm	Φ110/300
Tool exchanging manner		Pneumatic
Maximum tool weight	kg	18
Precision
Positioning accuracy	mm	0.021
Accuracy of repeated	mm	0.02

---
