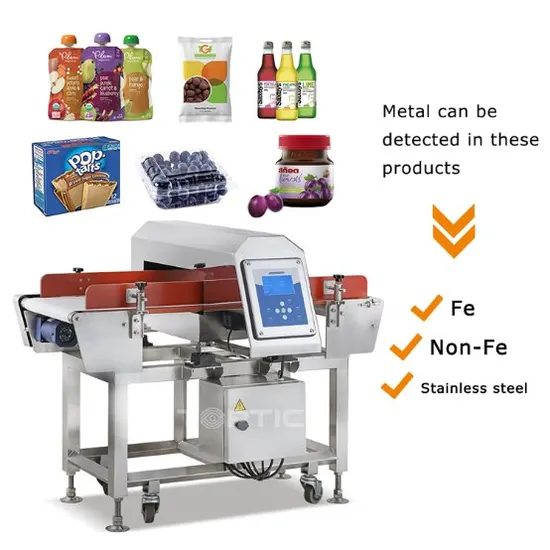

Full-Automatic High Sensitivity Metal Detector Metal Detection Machine Used in Food Packaging Line End with Competitive Price

Product Description

Full-Automatic High Sensitivity Metal Detector Metal Detection Machine Used in Food Packaging Line End with Competitive Price Product Show Hundreds of products cases and videos are available for you to understand our machine
better and find the most suitable solutions to you.
Layout 300:

Model	TT-MD3010/3015/3020
Frame material	Stainless steel 304
Detecting width(A)	300mm
Detecting height(B)	100mm to 150mm
Detecting sensitivity	Fe≥diameter 0.8mm to 1.0mm
	SUS304≥diameter 1.0mm to 2.0mm
Reject device	Flash light alarm, pneumatic pusher, sliding(optional), automatic shutdown
Number of memory products	200 plus kinds
Transfer speed	10 to 28 meters per minute(optional and adjustable)
Belt height above the ground	700+100 (can be customized)
Maximum load(single piece)	10KG to 50KG(can be customized)
Working environment	Temperature -10ºC-40ºC ,relative humility 30-90%

400:

Model	TT-MD4010/4012/4015/4020
Frame material	Stainless steel 304
Detecting width(A)	400mm
Detecting height(B)	100mm to 200mm
Detecting sensitivity	Fe≥diameter 0.8mm to 1.2mm
	SUS304≥diameter 2.0mm to 2.3mm
Reject device	Flash light alarm, pneumatic pusher, sliding(optional), automatic shutdown
Number of memory products	200 plus kinds
Transfer speed	10 to 28 meters per minute(optional and adjustable)
Belt height above the ground	700+100 (can be customized)
Maximum load(single piece)	10KG to 50KG(can be customized)
Working environment	Temperature -10ºC-40ºC ,relative humility 30-90%

500:

Model	TT-MD5015/5020/5025
Frame material	Stainless steel 304
Detecting width(A)	500mm
Detecting height(B)	150mm to 250mm
Detecting sensitivity	Fe≥diameter 1.0mm to 1.5mm
	SUS304≥diameter 2.0mm to 2.5mm
Reject device	Flash light alarm, pneumatic pusher, sliding(optional), automatic shutdown
Number of memory products	200 plus kinds
Transfer speed	10 to 28 meters per minute(optional and adjustable)
Belt height above the ground	700+100 (can be customized)
Maximum load(single piece)	10KG to 50KG(can be customized)
Working environment	Temperature -10ºC-40ºC ,relative humility 30-90%

1000:

Model	TT-MD10010
Frame material	Stainless steel 304
Detecting width(A)	1000mm
Detecting height(B)	below 100mm
Detecting sensitivity	Fe≥diameter 1.0mm
	SUS304≥diameter 2.0mm
Reject device	Flash light alarm, pneumatic pusher, sliding(optional), automatic shutdown
Number of memory products	200 plus kinds
Transfer speed	10 to 28 meters per minute(optional and adjustable)
Belt height above the ground	700+100 (can be customized)
Maximum load(single piece)	10KG to 50KG(can be customized)
Working environment	Temperature -10ºC-40ºC ,relative humility 30-90%

Details and Features 1.Easy. Interface adopts human-oriented design with 7 HD touch screen (or LCD screen) which is easy to
be operated.

2.Self-learning.
With more than 200 kinds of products parameters memory function, it can store more than
200 kinds of products detected parameters. Once the products' detected parameters are stored,
they will be recalled when the same products are detected.

3.Customization.
The machine can be customized according to both the detected products size, weight and characteristics
and production line exact situation to achieve the detection effect needed and enhance the production
efficiency.

4.Excellent Part.
The probe part, dual-loop design, is made of special materials to ensure machine high detection
sensitivity, strong anti-interference ability and stable performance. Its lifespan can reach more
than 10 years.

5.Cost saving.
The whole machine adopts modular design makes it more convenient to be assembled, debugged
and maintained. So that the cost will be saved.

6.Safety.
Water-proof, dust-proof, anti-corrosion, shock-proof and explosion-proof ensure the machine safe
operation. Belt meets U.S. "F.D.A." standards of white non-toxic materials.

7.Multi-languages.
Operation system with multi-languages is available.

8.Authority.
Detection accuracy corresponding HACCP system detecting indicators.
Available Kinds of Plugs
Kinds of Systems
Company Profile
FAQ 1. How can we choose the machine?
Please contact our sales, provide products and your requirements of them, we will give you solution with suitable machine and offer the most favourable quotation to you accordingly.
2. What is the leading time?
Regular machine can be delivered within 20-25 days. For customized machines, it need be evaluated depend on the project.
3.How long is the warranty period?
Whole machine 1 year. In warranty period, the new parts which are free will be sent to you to replace the broken ones.
4. What are the payment terms?
T/T, L/C, Western Union, or 100% L/C at sight. T/T 30% as deposit, and 70% before delivery. We will show you the photos and videos of the products and packages before you pay the balance.
5. Is the updated production process information available?
After order is confirmed, the updated production details such as products photos and videos will be available for you.The machine should be delivered after we test it and confirm its operation with you.
6. What kind of transportation we can provide?
Sea shipping, air transportation and international express.
We solemnly promise: equipment and material contact parts are 304 stainless steel material or food grade plastic, in line with the health requirements.
We warmly welcome and sincerely invite you to visit our factory. We will pick you up at airport, and the best accommodation will be provided for you. ---------------------------------------------------------------------------------------------------
